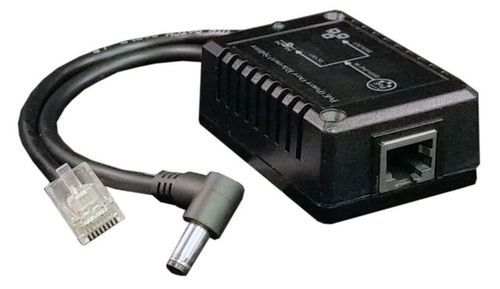

Tycon Power POE splitter, 48VDC 802.3af/at POE input, 5VDC @ 2.4A Output, 24W, 5.5x2.1 Barrel Connector

Description The POE-MSPLT line of dynamic splitters are compact Power over Ethernet adapters which splits the Data and PoE power onto separate output connectors and converts the active PoE (IEEE802.3af/at) input into a regulated DC output voltage. The DC output is provided on a standard 5.5mm/2.1mm barrel connector and the Data output is provided on standard RJ45 network connector, each on a dedicated 6” cable. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload. The unique POE-MSPLT-USB provides a USB output to power smartphones and tablets from PoE devices like network switches or PoE injectors. Features Very compact size Converts an active PoE input to a DC output Various output voltages and USB available Output power up To 15W Short circuit, over current protection Specifications • Output voltage: 5VDC • Output current: 2.4A • Output power: 12W • DC output connector: 5.5mm / 2.1mm barrel connector • Data output connector: RJ45 • Output cable length: 153mm (6”) • Load reg & noise: 5% • Line reg & ripple: 1% • PoE input (RJ45): IEEE 802.3af/at or passive PoE (36 – 60VDC) • Ethernet speed: 10/100MB • Efficiency: 75% Min • EMC standards: FCC Class B NE55022 Class B • Isolation voltage: 1500VDC • Isolation resistance: 100M Ohms minimum • Operating temperature: -25 to +50°C (-13 to +122°F) • Operating humidity: 5% - 90% non-condensing • Storage temperature : -40 to +80°C (-40 to +176°F) • Dimensions (LxWxH): 65 x 45 x 26mm, (2.6 x 1.8 x 1”) • Weight: 62g (2.2oz) Product Package Includes: 1 - POE Splitter, 48VDC 802.3af/at POE input DATA SHEET Product Data Sheet Tycon Power Learning Center Presentation
