Tycon Power POE Splitter, 48VDC 802.3af/at POE Input, 12VDC @ 0.5A Output, 15W
POE-MSPLT-4812P
by TYCON Systems
Sold out
Original price
$54.95
-
Original price
$54.95
Original price
$54.95
$54.95
$54.95
-
$54.95
Current price
$54.95

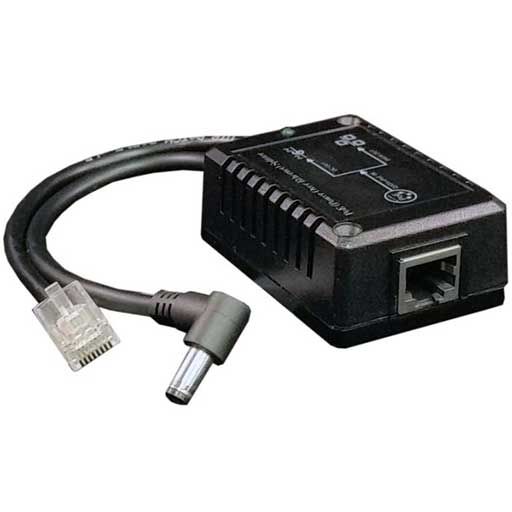

The POE-MSPLT-4812P us a unique splitter with dual outputs. It accepts 802.3af or 802.3at PoE and provides 48V PoE and 12VDC outputs concurrently so two separate devices can be powered. The DC output is provided on a standard 5.5 / 2.5 mm barrel connector and the Data / PoE output is provided on standard RJ45 network connector, each on a dedicated 6" cable. The DC connector is compatible with Tycon passive PoE injectors, like POE-INJ-1000-S, for ease of integration. In addition to being compatible with 10/100Mbps Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.
Product Features
• Very Compact Size
• Dual Output: 48V PoE plus 12VDC Output
• Converts an Active PoE Input to a DC Output
• Output Power up to 15W
• Short Circuit, Over Current Protection
Product Specifications
• Output Voltage:
48VDC Passive Poe
24VDC on 5.5/2.5mm DC Connector
• Output Current:
0.3A
0.5A
• Total Max Output Power: 15W
• DC Output Connector: 5.5 / 2.5 mm Barrel Connector - Compatible with 2.1mm
• Data Output Connector: RJ45
• Output Cable Length: 153mm (6")
• Load Regulation and Noise: 5%
• Line Regulation and Ripple: 1%
• PoE Input (RJ45): IEEE 802.3af/at or Passive PoE (36-60VDC)
• Ethernet Speed: 10/100Mbps
• Efficiency: 75% Min.
• EMC Standards: FCC Class B, NE55022 Class B
• Isolation Voltage: 1500VDC
• Isolation Resistance: 100M Ohms Minimum
• Operating Temperature: -25 to 50°C (-14 to 122°F)
• Operating Humidity: 5 to 90% non-condensing
• Storage Temperature: -40 to 80°C (-40 to 176°F)
• Dimensions: 65 x 45 x 26 mm (2.6 x 1.8 x 1 ")
• Weight: 62 g (2.2 oz)
• Warranty: 1 Year
