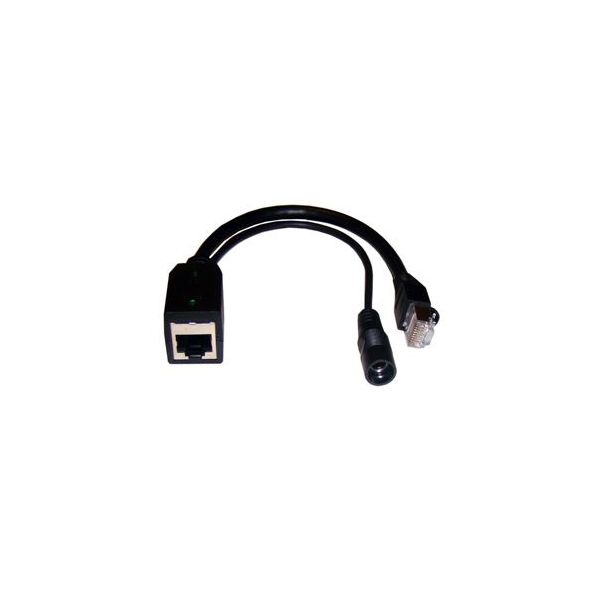

Tycon Power POE Injector with Power and Current Indicator LED

POE-INJ-LED-S by TYCON Systems
Sold out
Original price $5.95 - Original price $5.95
Original price
$5.95
$5.95 - $5.95
Current price $5.95
The unique POE-INJ-LED-S has power on and current indicator LED's. The Power LED shows that DC power (12V to 24V) is being supplied to the inserter through the DC jack. The current LED shows that a POE device is plugged in at the end of the CAT5 Ethernet cable up to 100m (330ft) away from the inserter. Product Features • Shielded CAT5e cable and connectors for added protection against surges and interference • CAT5 rated RJ45 for reliable high speed data connections (10/100MB) • Shrouded DC jack for improved safety • Power and Current LED indicators Product Specifications • Materials: UL rated materials, meets RoHS requirements • Voltage rating: 60VDC maximum • RJ45 jack: Shielded CAT5 rated, gold plated contacts • RJ45 power pins: 4,5 (+) 7,8 (-) • DC jack or plug: 5.5 x 2.1 mm, shrouded • DC wire size: 28AWG x 4 • Cable length: 165 mm (6.5") • Total length: 254 mm (10") • Weight: 31 g (1.1 oz) • Operating temperature: -40°C to 80°C (-40°F to 176°F) Product Documentation POE-INJ-LED-S Datasheet
