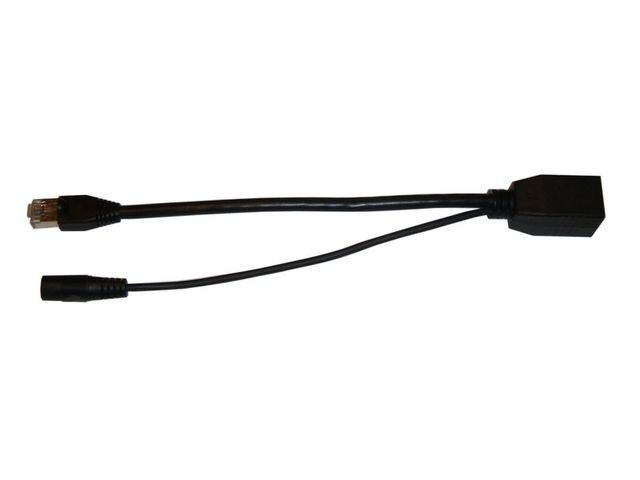

Tycon Power Passive POE Y Injector

Original price $5.45 - Original price $5.45
Original price $5.45
$5.45 - $5.45
Current price $5.45

The POE-YINJ-S is a low cost Tycon PoE inserter for inserting PoE power to CAT5 Ethernet data cables.

Product Features • Shielded CAT5e cable and connectors for added protection against surges and interference • CAT5 rated RJ45 jack for more reliable high speed data connections (10/100MB) • Shrouded DC jack for improved safety

Product Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems

Product Specifications • Materials: UL Rated Materials, Meets RoHS Requirements • Voltage Rating: 60VDC Maximum • RJ45 Jack: Shielded CAT5 Rated, Gold Plated Contacts • RJ45 Power Pins: 4,5(+) 7,8(-) • DC Jack or Plug: 5.5 x 2.1mm, Shrouded • DC Wire Size: 28AWG x 4 • CAT5 Wire Size: 28AWG x 8, Shielded • Cable Length: 165mm (6.5") • Total Length: 254mm (10") • Weight: 31g (1.1oz) • Operating Temperature: -40 to 80°C (-40 to 176°F)

Product Data Sheet

Tycon Power Learning Center Presentation
