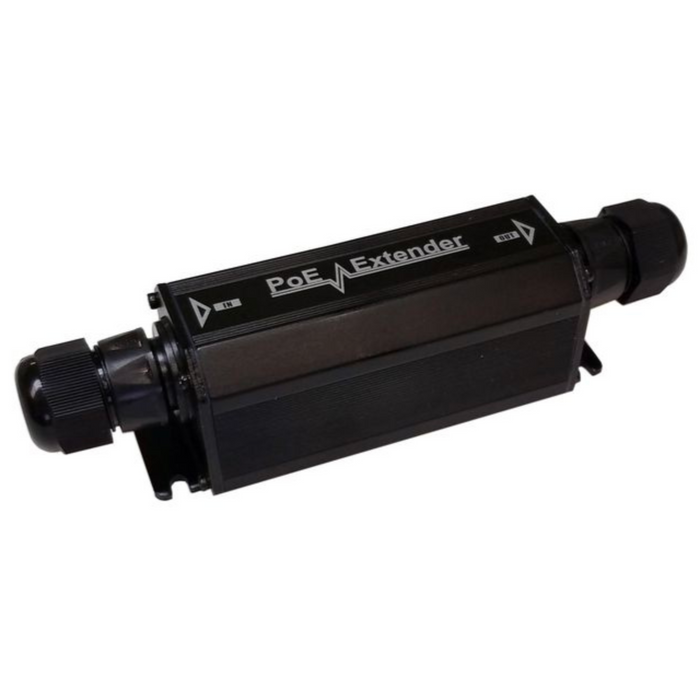

Tycon Power Outdoor Gigabit PoE and Ethernet Extender (up to 100m)

POE-EXT-GD-HP by TYCON Systems
Sold out
Original price $85.95 - Original price $85.95
Original price
$85.95
$85.95 - $85.95
Current price $85.95

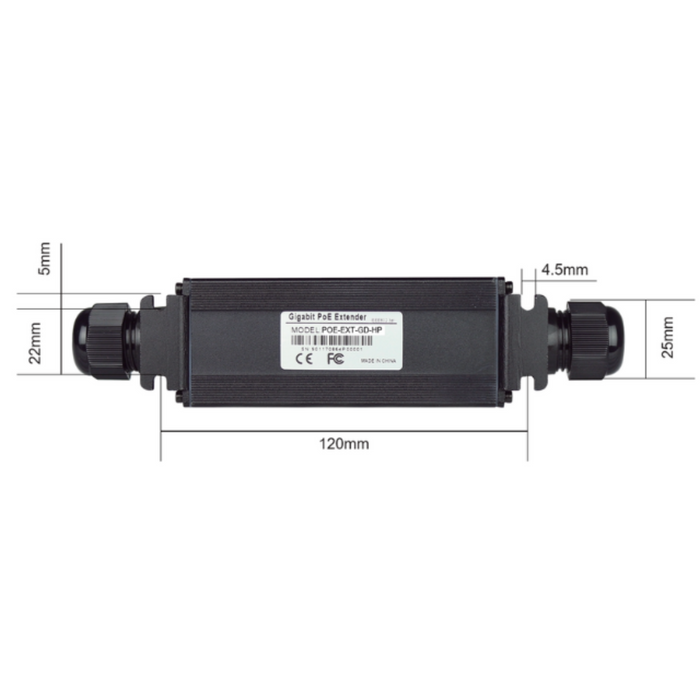

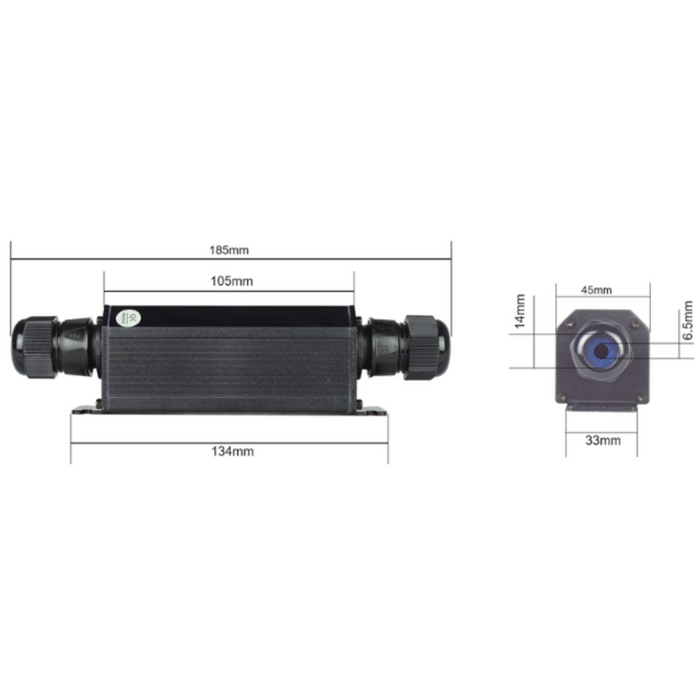

Tycon Power Systems POE-EXT-GD-HP is an extender device. Designed for outdoor usage, this extended allows you to extend your Gigabit Ethernet and PoE runs up to 100m. POE-EXT-GD-HP is a high quality, high power, shielded Gigabit Ethernet and PoE extender, for extending Ethernet beyond the standard 100m limit. By using multiple units, Ethernet and PoE can be extended up to 300m over CAT5/CAT6 cables. The units are powered by PoE so no additional power source is required. Product Features • 802.3af/at Compatible • 10/100/1000Mbps Compatible • Weatherproof - Outdoor Rated • Easy Plug and Play Operation • Extends PoE an Additional 100m • Auto Link Speed, Duplex and Crossover Product Applications • Wireless Equipment • IP Telephone • Security Applications • Sensor Equipment Product Specifications • PoE Input: 802.3af/at 44 to 57V Passive • PoE Input Pinout: 1,2(-) 3,6(+) or 7,8(-) 4,5(+) • PoE Output: 802.3af or 802.3at Class 4 • PoE Output Pinout: 1,2 (+) 3,6 (-) Up to 25W • Data Speeds: 10/100/100Mbps • Self Consumption Power: 2.0W Typ • Operating Temperature: -13 to 131°F (-25 to 55&deg:C) • Operating Humidity: 0 to 100% RH • Size: 7.3 x 1.8 x 1.8" (185 x 45 x 45mm) • Weight: 8.5oz (240g) • Warranty: 2 Years Product Documentation POE-EXT-GD-HP Datasheet
