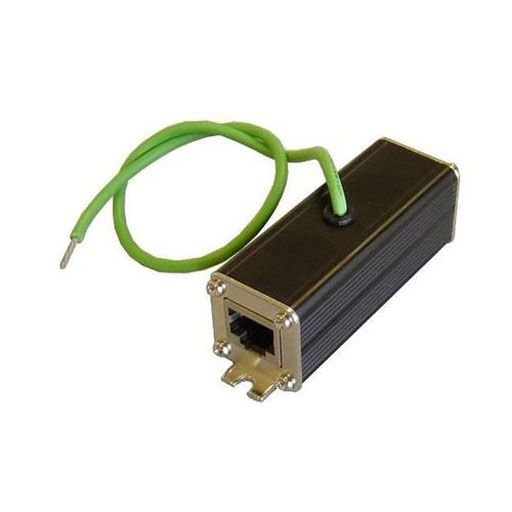

Tycon Power Network Lightning/Surge Protector 10Gbps Data Rate 70V POE 10KA.

TP-ESP-10G-POE by TYCON Systems
Sold out
Original price $57.95 - Original price $57.95
Original price
$57.95
$57.95 - $57.95
Current price $57.95
The Tycon Power Network Surge Protector, TP-ESP-10G-POE, is a high performance Ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. The Ethernet surge protectors protect to an impressive 10KA and are compatible with up to 10Gbps Ethernet networks and are compatible with IEEE8 02.3af/at/bt PoE standards. The Tycon TP-ESP-10G-POE is compatible with 10/100/1,000M /10,000M POE systems up to 5 8 V and can also be used successfully in pure data systems without PoE . Common mode and Differential Mode Protection is provided on all 8 Ethernet wires . Product Features • 10/100/1,000/10,000Mb (10G) Data Rate • CAT5, CAT5e, CAT6, CAT6a Compatible. • 802.3af, 802.3at, 802.3bt and Passive PoE Compatible • PoE, PoE+ and PoE++ Compatible • Shielded RJ45 Jacks and Full Metal Housing • Industrial strength operating range to 90C • Over-Current Protected • Complies with IEC 61000-4-5 Standard • UL497B Listed Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems • Industrial Control Systems Product Specifications • Operating Voltage POE: < 58V • Operating Current: 2.5A • Clamping Voltage: 70V POE (All 8 Pins) • Max Surge Discharge Current: 10KA (8/20us, 10 times with 3 mins interval) • Peak Pulse Current: 100A (10/1000us, 300 times with 3mins interval) • Protection Mode: Differential & Common Mode • Insulation Resistance: >10,000 MOhm • Capacitance (line to line): < 3 pF • Data Rate: 10/100/1,000/10,000 Mbps (10Gbps) • Operating Temperature: -40° to 194°C (-40°C to +90°C) • Storage Temperature: -40° to 257°C (-40°C to +125°C) • Operating Humidit:y 0% to 95% non condensing • Size: (L x W x H) 4.7 x 1 x 1” (120 x 25.4 x 25.4mm) • Weight: 2.8oz (80g) • Ground Wire: 14 AWG, 10.8” (275mm) long • Connectors: RJ45 Shielded Jacks • Ethernet Cable Compatibility: CAT5, CAT5e, CAT6. CAT6a • IEC Standard: 61000-4-5 • UL Standard: 497B • MTBF (Mean Time Between Failure): 1,414,941 Hours • Warranty: 3 Years Product Documentation TP-ESP-10G-POE Data Sheet
