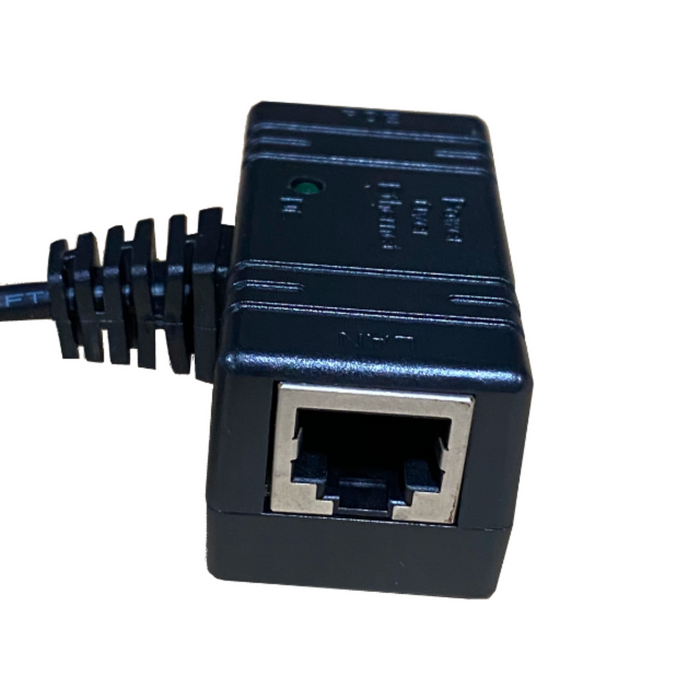

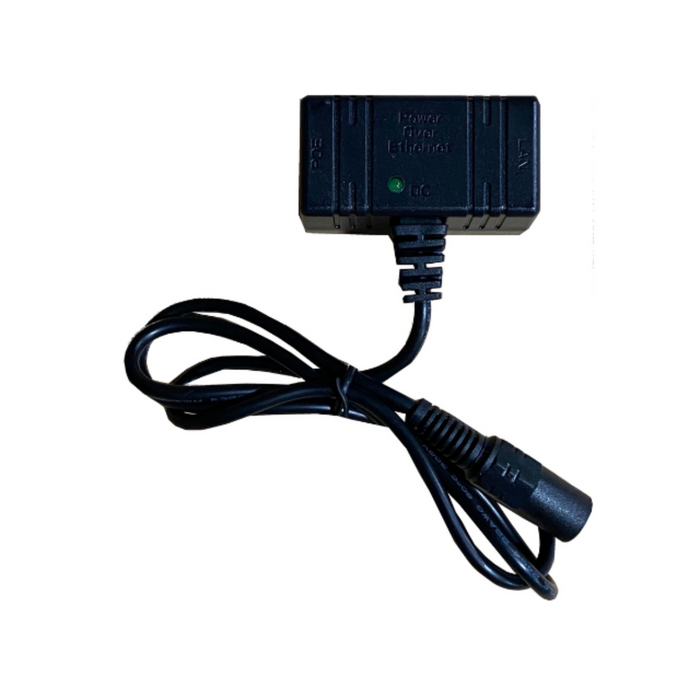

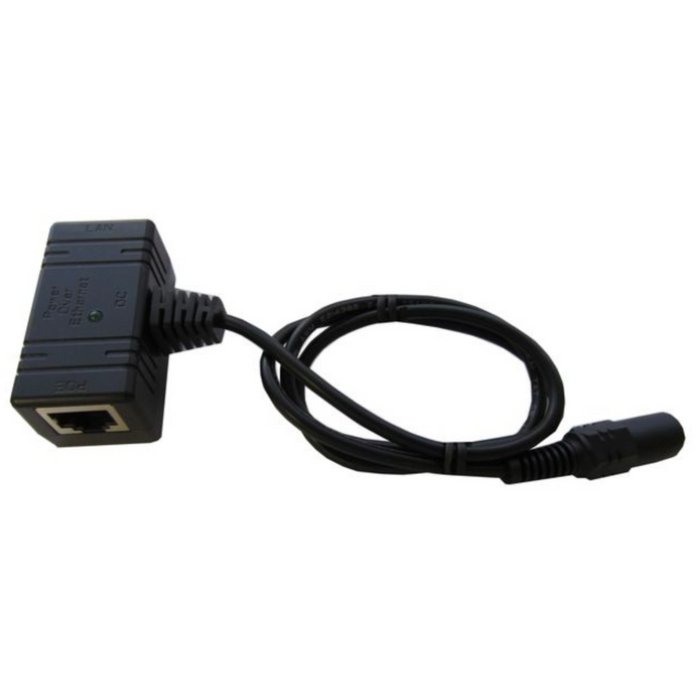

Tycon Power Gigabit POE Inserter, Shielded

POE-INJ-1000-S by TYCON Systems
Sold out
Original price $6.45 - Original price $6.45
Original price
$6.45 - $6.45
Current price $6.45

The Tycon Power POE-INJ-1000-S is a shielded passive power over Ethernet inserter that is compatible with data speeds up to 1 gigabit. The DC connector is shrouded to ensure a more reliable dust free connection. The shroud also adds mechanical friction to prevent the mating connector from disconnecting accidentally. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device.

Product Features
  • Compact Size, Shielded Design
  • 10/100/1000Mb Compatible
  • 610mm (24”) 22AWG DC Cable
  • Shrouded DC Connector
  • 5VDC to 58VDC Power Over Ethernet
  • Power On LED indicator
Product Applications
  • Wireless
  • Security
  • Telephone Systems
  • Network Applications
Product Specifications
  • DC Input Voltage Range: 5V to 58VDC
  • Data Speeds: 10/100/1000Mb
  • Maximum PoE Current: 3A
  • DC Connector: 2.1 x 55mm
  • DC Cable Length: 24" (610mm)
  • Wire Gauge: 12AWG
  • Operating Temperature: -40 to 185°F (-40 to 85°C)
  • Operating Humidity: 0 to 99% RH
  • Size: 1.9 x 0.95 x 0.95" (48 x 24 x 24mm)
  • Weight: 1.5oz (43g)
