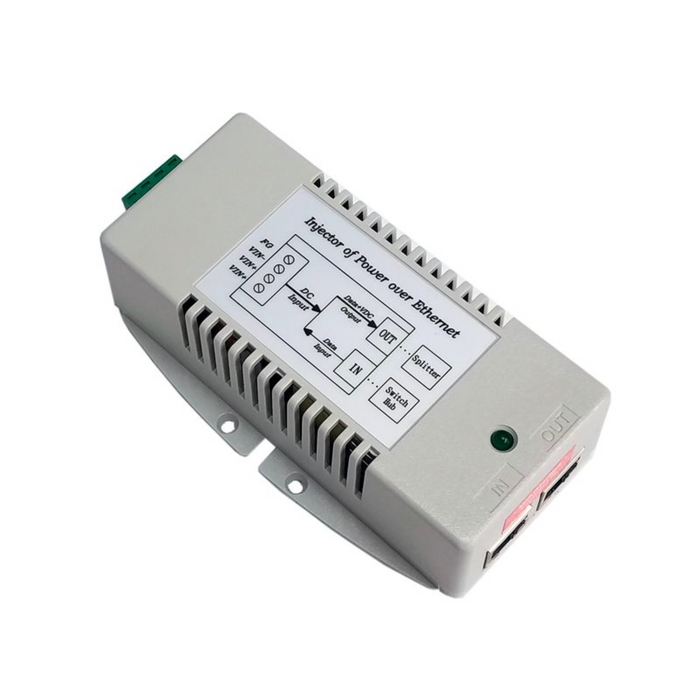

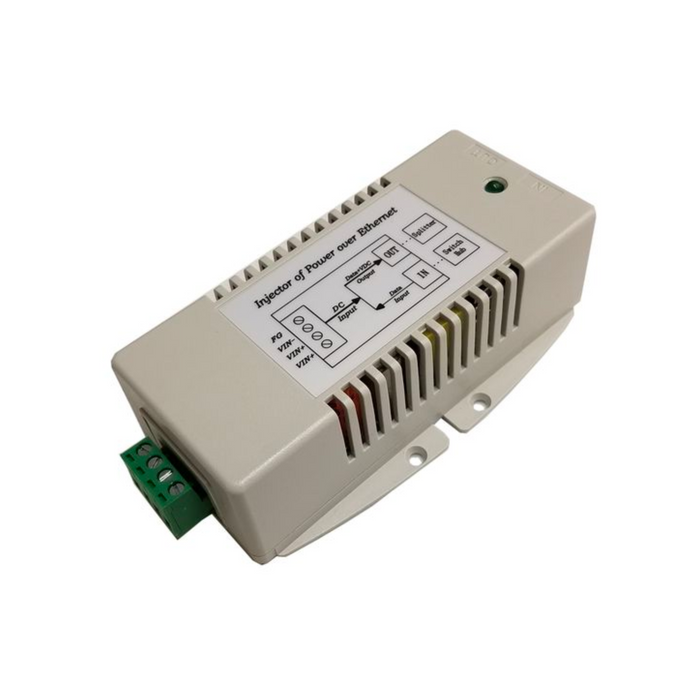

Tycon Power 40-60VDC Input, 56V Gigabit Passive PoE Output, 50W [TP-DCDC-4848G-HP]

TP-DCDC-4848G-HP by TYCON Systems
Original price $69.95 - Original price $69.95
Original price $69.95
$69.95
$69.95 - $69.95
Current price $69.95

The TP-DCDC-4848G-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a +/-12V battery system.



Product Applications:

  • 12V / 24V / 48C Battery Systems, Vehicle Applications
  • Wireless Access Points, and Client Devices
  • IP Phone and Security Camera Systems

Product Features

  • Input Voltage 12VDC or 24VDC or 48VDC
  • IEEE 802.3af/at Compliant or Passive PoE Output
  • Dual Inputs for Connecting 2 Power Sources
  • Integrated 10/100/1000MB PoE Inserter
  • High power up to 50W
  • Low Self Consumption Power
  • Short Circuit, Over Current and Reverse/Over Voltage Protect
  • High Temperature Operation
  • Compact Size - Maximize Available Space

Product Specifications:

  • DC Input Voltage: +/- 36VDC - 72VDC
  • DC Output Voltage: 56V (Passive
  • Data in & Data/POE Output Connector: RJ45 (shielded)
  • Output Current (max): 0.9A
  • Output Power (max): 50W
  • Self Consumption Power: 1W
  • Efficiency (min): 75%
  • Operating Temp: -30 to +60deg C (-22 to +140deg F)
  • Operating Humidity: 5% - 90%
  • Dimensions: 125 x 75 x 38 mm (4.9 x 3 x 1.5 in)
  • Weight: 300g (10.6oz)
