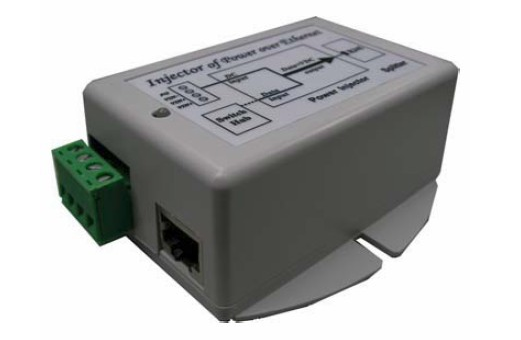

Tycon Power GIGABIT 36-72VDC In, 24VDC Out 24W DC to DC Converter and POE Inserter

TP-DCDC-4824G by TYCON Systems
Sold out
Original price $47.95 - Original price $47.95
Original price
$47.95
$47.95 - $47.95
Current price $47.95
The TP-DCDC-4824G DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a 48 or 24V battery system They have an integrated Gigabit PoE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. Input voltage must be between 36VDC and 72VDC. Product Features • Input Voltage 36-72VDC; Output 24VDC • Integrated Gigabit POE Inserter • Output Power 24W • Short Circuit, Over Current and Over Voltage Protection • High Temperature Operation • Removable Wire Terminal Input for up to 12AWG wires Product Specifications • DC Output Voltage: 24V (Passive) • Data in & Data/POE Output Connector: RJ45 (Shielded) • Output Current (max): 1A • Output Power (max) 24W • Self Consumption Power: 1W • Efficiency (min): 75% • Line Regulation: 1% • Load Regulation: 5% • Ripple: 1% • Noise: 1% • Operating Temps: -30 to +60deg C (-40 to +176deg F) • Operating Humidity: 5% - 90% • Dimensions: 85 x 76 x 36 mm (3.4 x 3 x 1.4 in) • Weight 134g (4.7oz) Data Sheets TP-DCDC-4824G Product Data Sheet
