Tycon Power GIGABIT 10-60V IN,56V 70W OUT,GigE 4pr Pasv PoE Inj

TP-DC-1256G-VHP by TYCON Systems
Original price $229.95 - Original price $229.95
Original price $229.95
$229.95
$229.95 - $229.95
Current price $229.95

The 5 Gigabit compatible TP-DC-1256G-VHP is a very high power DC to DC converters / PoE inserters designed especially for Ubiquiti airFiber™ antenna systems and other systems which require high power passive or active PoE such as Axis High Power PoE PTZ security cameras.

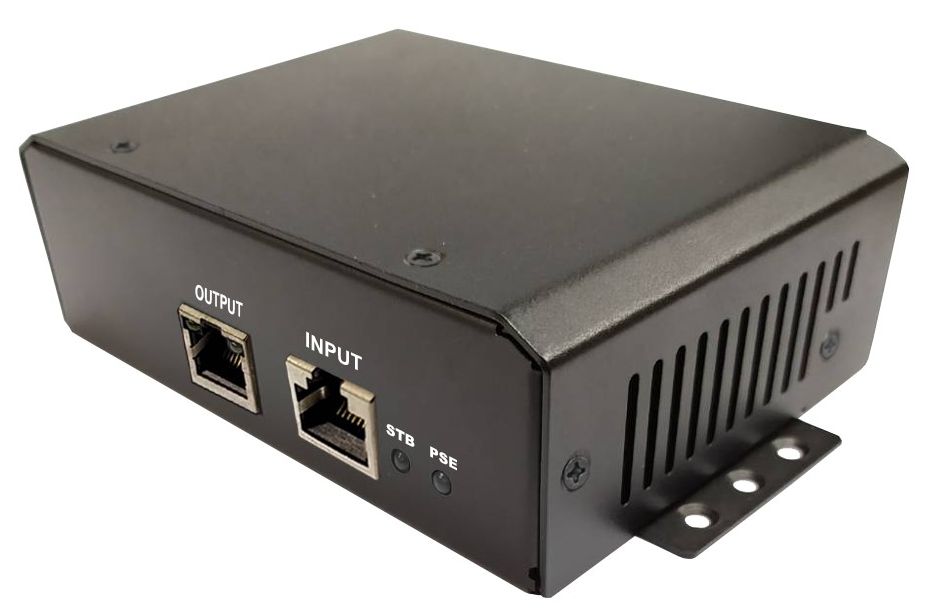

The unique PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires (4 Pair). The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications. The units input/output is isolated so they work in a negative ground or positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for low voltage, surge, short circuit and overload. The units have a metal housing and come complete with a DIN Rail mounting kit for mounting to a standard DIN rail.


Product Features:
  • Input Voltage 10VDC to 60VDC
  • 8 wire (4 Pair) 56VDC High POE Output
  • High Power Output to 70W
  • Dual DC Inputs for connecting 2 Power Sources
  • 5 Gigabit Data Throughput
  • Low Voltage Disconnect Feature
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • Industrial Temperature Range to 70C


Applications:
  • 12VDC / 24VDC Remote Power Systems
  • 48VDC or -48VDC Remoter Power Systems
  • Ubiquiti airFiber Antennas
  • Axis Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras
  • High POE 4 Pair Powered Cameras and Radio's


Product Specifications:
  • POE Specification: Passive (8 Wire, 4 Pair)
  • DC Input Voltage: +/- 10VDC - 60VDC
  • DC Output Voltage: 56VDC
  • Data in & Data/POE Output Connector: RJ45 (shielded)
  • Output Current (max): 1.25A
  • Output Power (max): 70W
  • Self Consumption Power: 2W
  • Efficiency (min): 85%
  • Operating Temp: -40 to +70deg C (-40 to +158deg F)
  • Operating Humidity: 5% - 90%
  • Dimensions: 86 x 139 x 40 mm (3.5 x 5.5 x 1.57 in)
  • Weight: 550g (19.4oz)
