Tycon Power Ethernet Surge Protector Gigabit

TP-ESP-1000-POE by TYCON Systems
Sold out
Original price $28.95 - Original price $28.95
Original price
$28.95
$28.95 - $28.95
Current price $28.95

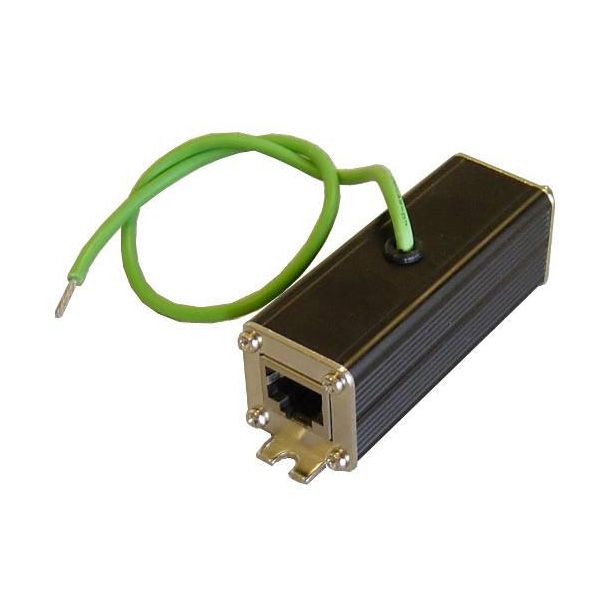

Tycon TP-ESP-1000-POE, is a low cost Tycon ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. It has a full metal body for improved EMI suppression and has integral mounting feet and a separate ground wire. It are designed for indoor or outdoor use inside a weatherproof enclosure. The ESP-1000 is compatible with POE systems up to 57V. Protection is provided on all 8 CAT5 wires.


Product Features:
• 10/100/1000 Mbps Data Rate
• 7.5V Data Clamping Voltage
• CAT5 and CAT5e Compatible. All 8 pins protected
• Shielded jacks and full metal housing
• Complies with IEC 61643-21 Standard
• Integral Mounting Feet and Ground Wire

Product Applications:
• Wireless Access Points and Client Devices
• IP Phone and Security Camera Systems
• Industrial Control Systems

Product Specifications:
• Operating Voltage: Data 5V; POE 48V
• Clamping Voltage: 70V POE (All 8 Pins)
• Max Surge Discharge Current: 5KA (8/20us)
• Peak Pulse Current: 100A (10/1000us)
• Protection Mode: Differential & Common Mode
• Insulation Resistance: > 1000 MOhm
• Shunt Capacitance: < 25 pF
• Data Rate: 10/100/1000 Mbps
• Response Time: < 5 ns
• Operating Temperature: -40°F to 185°F (-40°C to 85°C)
• Storage Temperature: -40°F to 257°F (-40°C to 125°C)
• Operating Humidity: 0% to 95%, non condensing
• Size: 4" x 1" x 1" (102 x 25 25mm)
• Weight: 3.1oz (88g)
• Ground Wire: 14 AWG, 10" (26cm) long
• Connectors: RJ45 Shielded Jacks
• IEC Standard: 61000-4-5, 61643-21
