Tycon Power Active Splitter 802.3af/at POE to 5VDC 25W Output

POE-SPLT-4805G by TYCON Systems
Sold out
Original price $66.95 - Original price $66.95
Original price
$66.95
$66.95 - $66.95
Current price $66.95

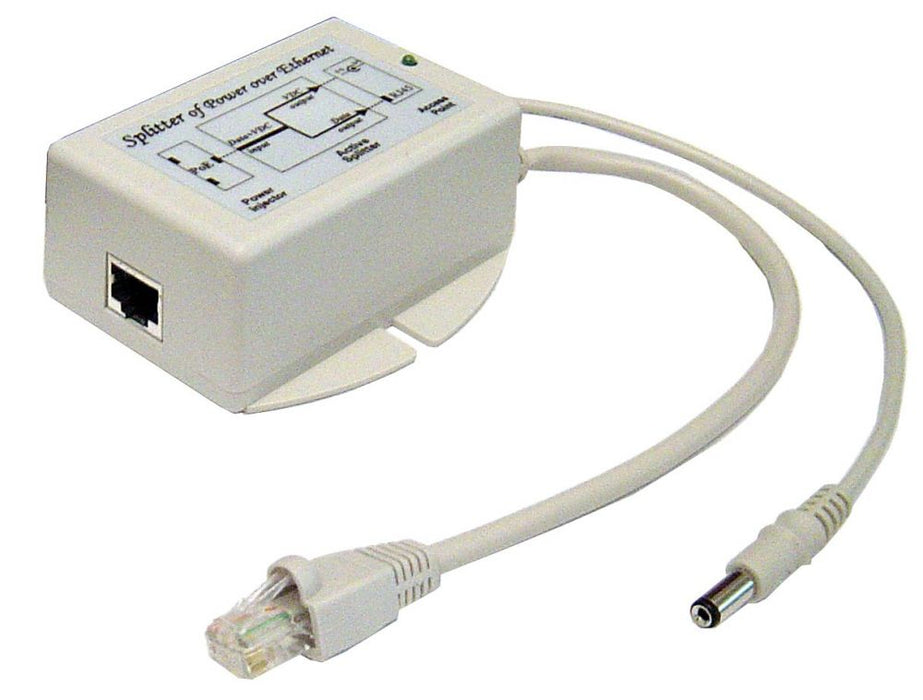

Tycon Power POE-SPLT-4805G is a Gigabit splitter which is useful for powering non-PoE devices from PoE switches or other PoE inserters. Supplying power to legacy equipment over CAT5 cable reduces installation costs because power and data can be supplied over a single low cost cable. Normal cable distances can be up to 300ft. The POE is to power a non POE device using POE. It has a POE input compatible with 802.3af and 802.3at POE standards. The 25W DC output is via a standard 5.5mm/2.1mm barrel connector on a 14in cable. Data output is thru a 14in CAT5 cable terminated with an RJ45 connector.

Inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage.


Product Features
  • Converts PoE Input to DC or AC Output
  • Outputs up to 80W
  • Provides 5VDC 25W from Standard 802.3at PoE Input
  • Short Circuit, Over Current and Over Voltage Protection
  • High Temperature Operation
Product Specifications
  • Output Voltage: 5VDC
  • Output Current: 5A @ 5VDC
  • Output Power: 25W
  • Output Connector: 5.5 / 2.1mm Barrel Connector
  • Output Cable Length: 355mm (14")
  • Load Regulation: 5%
  • Line Regulation: 1%
  • PoE Input: 802.3at 48VDC (4 pairs)
  • Ethernet Speed: 10/100/1000MB
  • Efficiency: 86% Min
  • EMC Standards: FCC Class B NE55022 Class B
  • Isolation Voltage: 1500VDC
  • Isolation Resistance: 100M Ohms Minimum
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 5% to 90% non condensing
  • Storage Temperature: -40 to 80°C (-40 to 176°F)
  • MTBF (Mean Time Between Failure): 87,063 Hours
  • Dimensions: 85 x 75 x 36mm (3.3 x 3 x 1.4")
  • Weight: 150g (5.3oz)
  • Warranty: 3 Years
