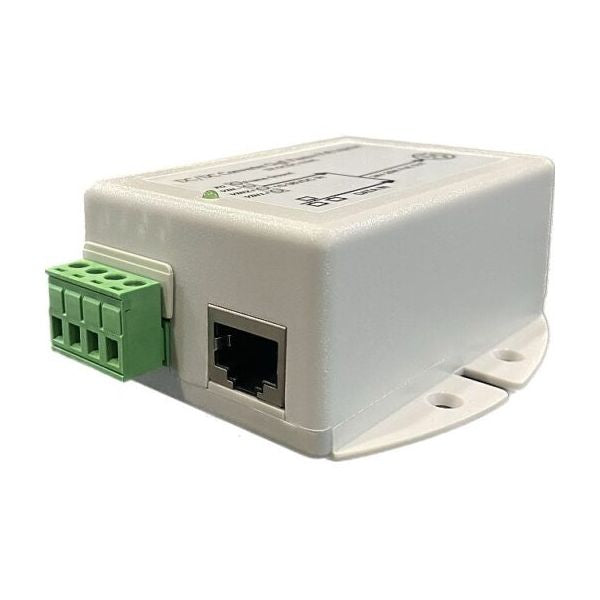

Tycon Power 9-36VDC In, 48VDC Out 24W DC to DC Converter / POE Ins
The Tycon Power, TP-DCDC-1248, DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC
Power Over Ethernet voltage from a 12 or 24V battery system.
They have an integrated POE injector to apply the regulated 48VDC to the CAT5 Ethernet cable. The input voltage must be between 9VDC and 36VDC.
They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output of 24W.
- Input Voltage 9-36VDC; Output 48VDC
- Integrated POE Inserter
- High Power 24W
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
- Removable Wire Terminal Input for up to 12AWG wires
Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)
Weight: 134g (4.7oz)
