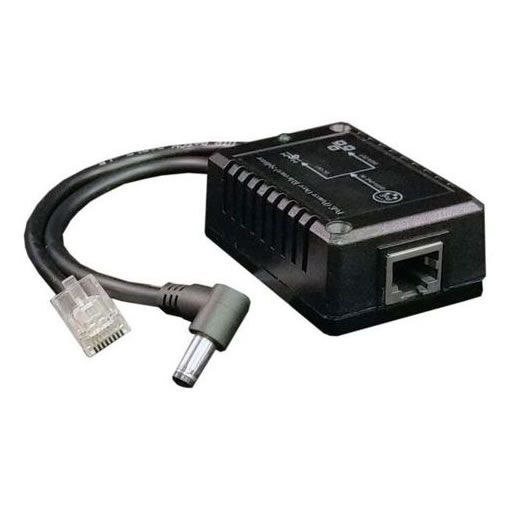

Tycon Power 802.3af PoE Splitter 48VDC 15W Output Female Connector

POE-MSPLT-4848P-F by TYCON Systems
Sold out
Original price $50.95 - Original price $50.95
Original price
$50.95 - $50.95
Current price $50.95
Tycon Power POE-MSPLT-4848P-F is a IEEE 802.3af compliant Gigabit PoE splitter. It splits electric power and data into two cables like the TP-Link TL-POE10R, but comes improved with with dual outputs that accept 802.3af or 802.3at PoE so so you have even more freedom to install non-PoE APs, IP cameras, and IP phones. Product Features • Dual Output: 48V PoE plus 48VDC Output • Very Compact Size • Converts an Active PoE Input to a DC output • Output Power Up To 15W • Short Circuit, Over Current Protection Product Specifications • Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af • Output Voltage: 48VDC Passive PoE 48VDC on 5.5/2.5mm DC Connector • Output Current: 0.4A 1A • Total Max Output Power: 15 W • Data Output Connector RJ45 Plug, (-F version RJ45 Shielded Socket) • Output Cable Length 153mm (6”) • Operating Temperature -40 to +50°C (-40 to +122°F) • Operating Humidity 5% - 90% non-condensing • Storage Temperature -40 to +80°C (-40 to +176°F) • Dimensions: 65 x 45 x 26mm (2.6 x 1.8 x 1”) Product Includes: • (1) POE-MSPLT-4848P-F PoE Splitter • (1) CAT5 Ethernet Cable • (1) Power Cable • (1) User Guide Product Documentation Tycon Power POE-MSPLT-4848P-F Datasheet Tycon Power POE-MSPLT-4848P-F User Guide
