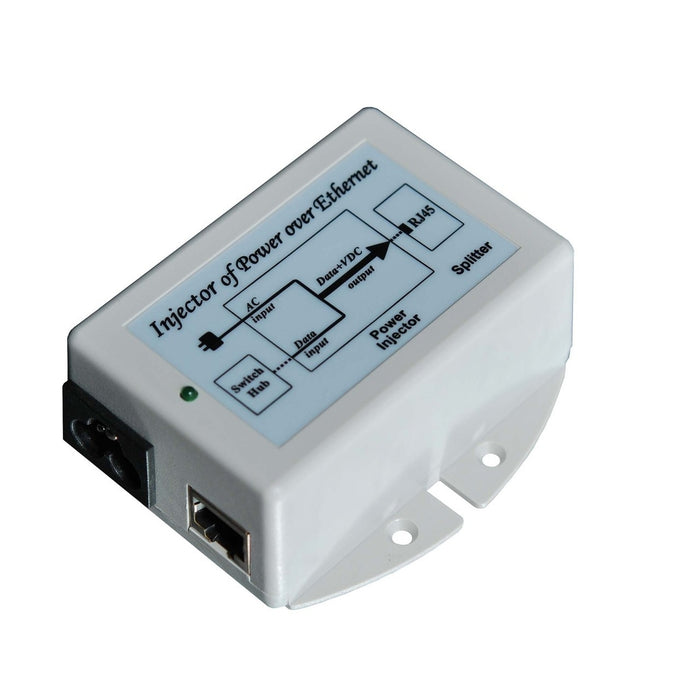

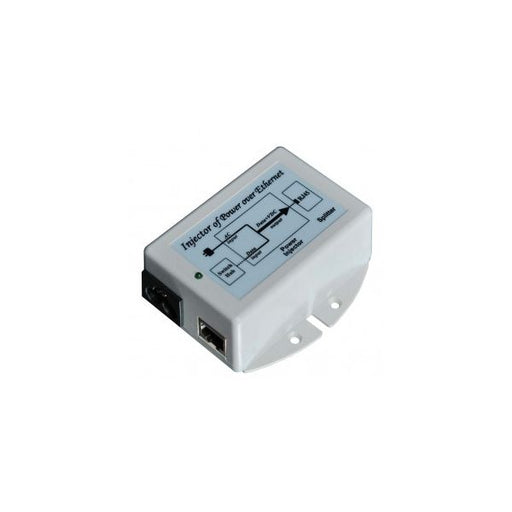

Tycon Power 802.3af 48V 16W Gigabit POE Power Source/Inserter With Surge Protection
The TP-POE-48GD Gigabit 802.3af Power Over Ethernet Power Source/Inserter offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions. They provide the 802.3af function to prevent powering the POE port if a valid 802.3af client is not detected. They accept data-in to a shielded RJ45 Jack and provide data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).
The POE inserters have built in Ethernet surge protection which eliminates the need for a standalone Ethernet surge protector.
The TP-POE-48G are auto ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 24VDC at the output. They have various protections for surge, short circuit and overload.
Output is 48VDC with load regulation within 5%.
- Remotely Power Equipment thru CAT5 Cable up to 100m
- Auto ranging Switching Power Supply
- Short Circuit, Over Current and Over Voltage Protection
- High Temperature Operation
- Compact size
- Floor / Desktop / Wall Mount
- CE/FCC/UL/CB Approved
- AC Input: 90-264VAC 47-63Hz
- Max Inrush Current (120VAC): 30A
- Efficiency (min): 85%
- Line / Load Regulation: 1% / 5%
- Ripple / Noise: 1% / 2%
- Protections: Over-Voltage, Short Circuit, Over-Current
- Surge Protection:
Ethernet: 4 Pin (1/2, 3/6) Common Mode Protection, 7.5V Clamping Voltage 5.4A (8/20us Peak Pulse Current, <2pF Shunt Capacitance
AC Input: Operating Voltage = 385VDC, Clamping Voltage = 775VDC, Maximum discharge current is 1200A(8/20us) - EMC Standards: FCC Class B EN55022 Class B
- Safety Standards: UL1950, CSA 22.2 & TUV EN60950
- Environmental Standards: RoHS
- Operating Temperature: -30 to 60°C (-22 to 140°F)
- Operating Humidity: 5% - 90%
- Storage Temperature: -40 to 80°C (-40 to 176°F)
- PoE Output Voltage: 48V
- Output Current: 0.35A
- Output Power 16.8W
- PoE Type: 802.3af
- Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4")
- Weight: 150g (5.3oz)
