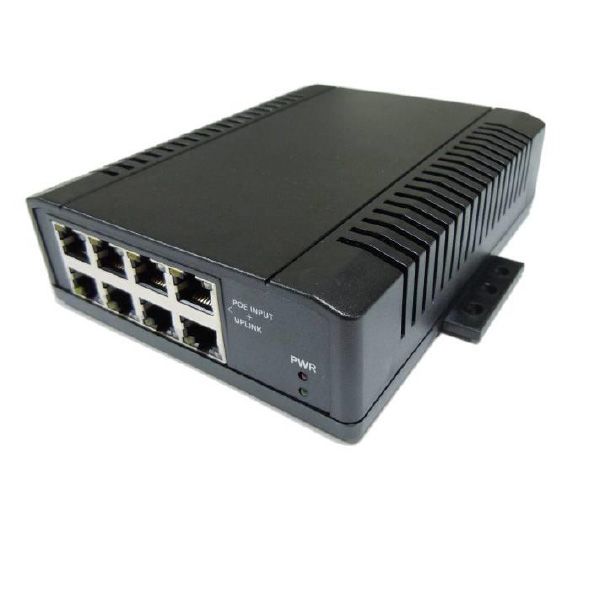

Tycon Power 8 Port High Power POE 10/100BASET Switch. 802.3af/at Compliant

Requires 48-56V DC Power Source (Not Included) Product Features • High Power 10/100Mb 8 Port PoE Switch • Remotely Power Equipment thru CAT5 Cable up to 100m • Extend Ethernet and POE up to 200m • Up to 2A per Port • Built-In Surge Protection • Automatic MDI/MDI-X Crossover • Automatic Speed and Duplex Sensing • 2K Self Learning MAC Address Table • High Temperature Operation • CE and FCC Certification Product Specifications • Ethernet Standard: IEEE802.3/IEEE802.3u (10 base-T/100base-T) • POE Standard (Port 1-8): IEEE802.3af/at • Ports: 1 data/PoE input and 7 data/PoE output automatic crossover and polarity • Transmission Speed: 100 Mbps(100base-T),10 Mbps(10base-T) Auto-negotiation • Switch Technology: Store and Forward • Protocol: CSMA/CD • Flow Control: IEEE802.3x(full-duplex), Back Pressure(half-duplex) • Data Transmission Rate: 148800pps for 100base-T, 14880pps for 10base-T • Address Table: 2K MAC, self-learning • Connections: Shielded RJ45 • POE Port: Port 1-7, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8) • Maximum POE Power: Port 1-8, 35W Per Port – 802.3af/at Version, Secondary Wire Terminal Input Max 10A • POE Protection: Over Temperature, Over Current, Over/Under Voltage • DC Power Input: 12V to 57V, Dual DC Inputs, Reverse Polarity Protected Product Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems • Power multiple devices from 1 data cable Technical Data Sheets: TP-SW8-D Data Sheet
