Tycon Power 56V 60W High Power Gigabit POE Power Source/Inserter

TP-POE-HP-56G-FBN by TYCON Systems
Sold out
Original price $77.95 - Original price $77.95
Original price
$77.95
$77.95 - $77.95
Current price $77.95

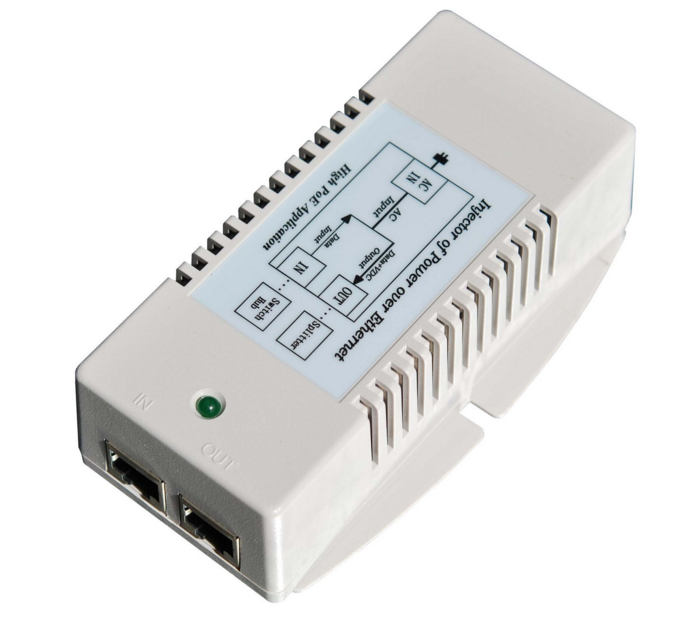

This Tycon Power POE is a quality power source for years of reliable operation, even in the toughest conditions. They accept data-in to a shielded RJ45 Jack, and provide surge protected data-out and power on the shielded RJ45 output jack. Product Features • Remotely Power Equipment through CAT5 Cable up to 100m • Built in Ethernet and AC Surge Protection • Short Circuit, Over Current and Over Voltage Protection • High power to 56W PoE Output • Autoranging Switching Power Supply • 10/100/1000Mb Gigabit Compatible • High Temperature Operation to 60C • DIN Rail Mountable Product Specifications • AC Input: 90-264VAC 47-63Hz • Max Inrush Current (120VAC): 25A • POE Voltage: 56VDC @ 1.07A • Output Power: 60W Max • Efficiency (min): 80% • Line / Load Regulation: 1% / 5% • Ripple / Noise: 1% / 2% • POE Compatibility: Passive POE • Data Compatibility: 10/100/1000M , Gigabit Compatible • Protections: Over-Voltage, Short Circuit, Over-Current • Operating Temperature: -40 to +60deg C (-40 to +140deg F) • Dimensions: 124 x 75 x 38 mm (4.9 x 3 x 1.5 in) Data Sheets TP-POE-HP-56G-FBN Data Sheet TP-POE-HP-56G-FBN Quick Start Guide
