Tycon Power 56V 60W 10G 802.3at PoE++ Inserter

TP-POE++10G by TYCON Systems
Sold out
Original price $45.95 - Original price $45.95
Original price
$45.95
$45.95 - $45.95
Current price $45.95

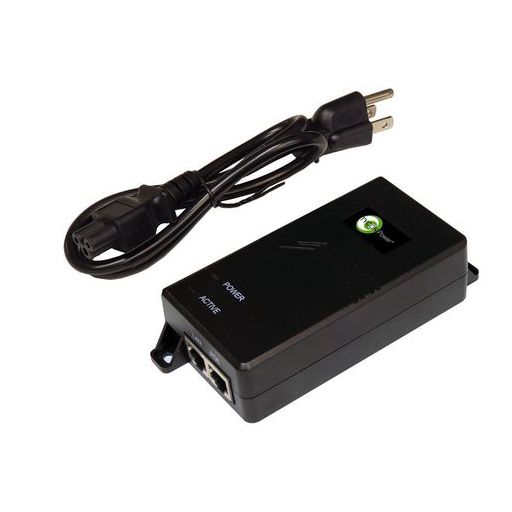

The TP-POE++10G is a compact 10/100/1000/10000MB (10G) desktop PoE++ inserter with 120 / 240VAC auto-ranging input. The inserter has an output that is 4 pair: Mode A (1,2+ 3,6-) and Mode B (4,5+ 7,8-) 802.3at PoE++ at up to 56W. It comes with a 3 prong 2’ North American power cord with IEC C5 plug. Great for use with PoE++ Wireless Devices and PoE++ Security Cameras! Product Features • 10/100/1000/10000Mb Data Rate • CAT6 (or higher) for 10G • Compact Size, Shielded RJ45 Jacks • I.T.E. Power Supply Product Specifications • AC Input Voltage: 100-240VAC 50/60Hz • Output PoE Voltage: 56VDC +/-2V, 802.3at PoE++, 4 Pair: Mode A (Pins 1,2+ 3,6-) and Mode B (Pins 4,5+ 7,8-) • Maximum Load: 1A (56W) Max • Protections: Short Circuit, Overcurrent, Surge/ESD (4kV) • Efficiency: 84% Minimum • Ripple and Noise: 200mV p-p max • Data Rate: 10/100/1000/10000Mbps (10Gb) • No Load Consumption: 1W Max • Operating Temperature: -20 to +50°C • Storage Temperature: -30 to +80°C • Operating Humidity: 5% to 90% non condensing • MTBF: 100,000 Hrs • Certifications: CE, FCC | IEC 60065, IEC60950, EN55022, EN55013, EN55024, EN55020, FCC Part 15 Class B, EN61000-4-4, EN61000-4-5 • Connectors: RJ45 Shielded Jacks • Ethernet Cable Compatibility: CAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m • Warranty: 3 Years Product Includes (1) PoE Inserter (1) Power Cord Product Documentation TP-POE++10G Data Sheet
