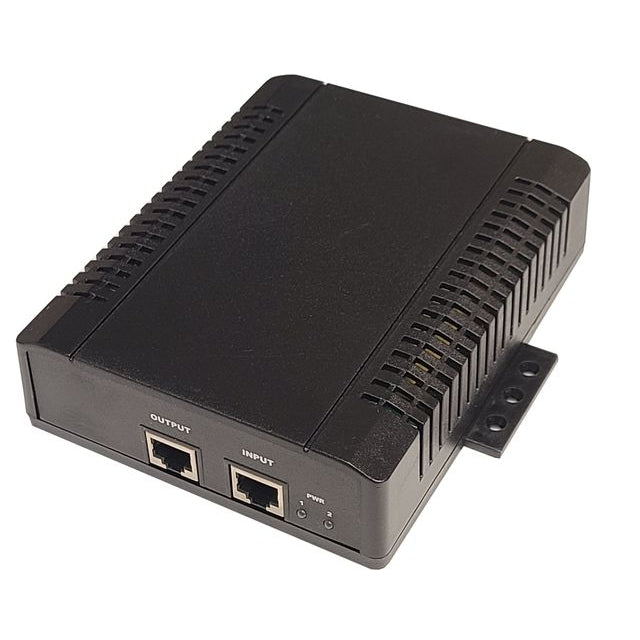

Tycon Power 56V 100W High Power Gigabit POE Power Source/Inserter [TP-POE-HP-56G]

TP-POE-HP-56G by TYCON Systems
Original price $159.95 - Original price $159.95
Original price $159.95
$159.95
$159.95 - $159.95
Current price $159.95

The TP-POE-HP-56G PoE is a quality Gigabit midspan power source, designed for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (328 feet). The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They have total power output up to 100W.


Product Features:

  • 100W Power
  • Remotely Power Equipment thru CAT5 Cable up to 100m
  • Built in Ethernet and AC Surge Protection
  • Autoranging Switching Power Supply
  • Short Circuit, Over Current and Over Voltage Protection
  • 10/100/1000Mb Compatible
  • High Temperature Industrial Operation
  • Compact size – Floor / Desktop / Wall Mount


Product Applications

  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems

Product Specifications

  • 90-264VAC 47-63Hz
  • PoE Output: 56VDC 1.8A 100W on all 8 wires
  • PoE Type: Passive
  • Max Inrush Current: 30A
  • Efficiency: 85%
  • Line / Load Regulation: 1% / 5%
  • Ripple / Noise: 1% / 2%
  • Protections: Over-Voltage, Short Circuit, Over-Current
  • Surge Protection:
    • Ethernet: 4 Pin (1/2, 3/6) Common Mode Protection, 7.5V Clamping VOltage 5.4A (8/20us) Peak Pulse Current, <2pF Shunt Capacitance
    • AC Input: Operating Voltage = 385VDC, Clamping Voltage = 775VDC, Maximum discharge current is 1200A (8/20us)
  • Certifications: FCC, CE
  • EMC Standards: FCC Class B EN55022 Class B
  • Safety Standards: UL1950, CSA 22.2 & TUV EN60950
  • Environmental Standards: ROHS
  • Operating Temperature: -40 to 60°C (-22 to 140°F)
  • Operating Humidity: 5% to 90%
  • Storage Temperature: -40 to 80°C (-40 to 176°F)
  • Case Size: 116 x 150 x 41mm (4.6 x 5.9 x 1.6")
  • Weight: 454g (16oz)
