Tycon Power 53V 30W 802.3AT PoE+ Inserter

TP-POE+10G by TYCON Systems
Sold out
Original price $32.95 - Original price $32.95
Original price
$32.95
$32.95 - $32.95
Current price $32.95

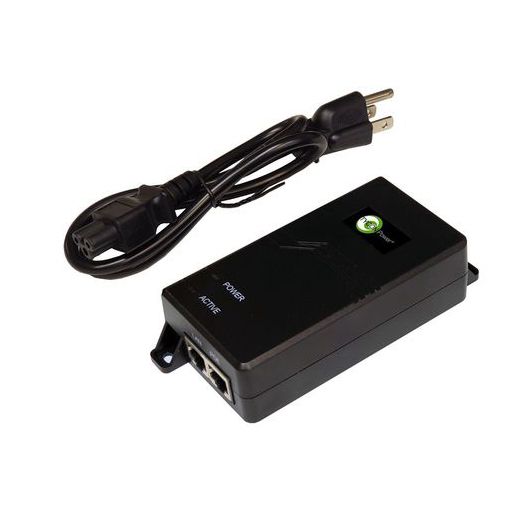

The TP-POE+10G is a compact 10/100/1000/10000MB (10G) desktop 802.3at PoE+ inserter with 120/240VAC auto-ranging input. The reliable UL Listed inserter has an output that is Mode A (1,2+ 3,6-) 802.3at PoE at up to 31.8W. It comes with a 3 prong 2’ North American power cord with IEC C5 plug. Great for use with 802.3af/at PoE Wireless Devices and 802.3af/at PoE Wireless Cameras! Product Features • 10/100/1000/10000Mb Data Rate •CAT6 (or higher) for 10G • Compact Size, Shielded RJ45 Jacks Product Specifications • AC Input Voltage: 100-240VAC 50/60Hz • Output PoE Voltage: 53VDC +/-2V, 802.3af/at PoE, Mode A (Pins 1, 2+ 3,6-) • Maximum Load: 0.6A (31.8W) Max • Protections: Short CIrcuit, Overcurrent, Surge/ ESD (8kV) • Efficiency: 78% Minimum • Ripple and Noise: 200mV p-p max • Data Rate: 10/100/1000/10000Mbps (10Gb) • No Load Consumption: 1W Max • Operating Temperature: -20 to +50° C • Storage Temperature: -30 to +80° C • Operating Humidity: 10% to 90% non-condensing • MTBF: 50,000 Hours • Certifications: UL, CE, FCC | IEC 60065, IEC60950, UL60950-1, UL/CUL62368, EN55022, EN55013, EN55024, EN55020, FCC Part 15 Class B, EN61000-4-4, EN61000-4-5 • Connectors: RJ45 Shielded Jacks • Ethernet Cable Compatibility: CAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m • Warranty: 3 Years Product Includes (1) PoE Inserter (1) Power Cord Product Documentation TP-POE+10G Data Sheet
