Tycon Power 52W 24VDC to 24VAC Gigabit Active PoE Splitter

POE-SPLT-2424AC-G by TYCON Systems
Sold out
Original price $95.95 - Original price $95.95
Original price
$95.95
$95.95 - $95.95
Current price $95.95

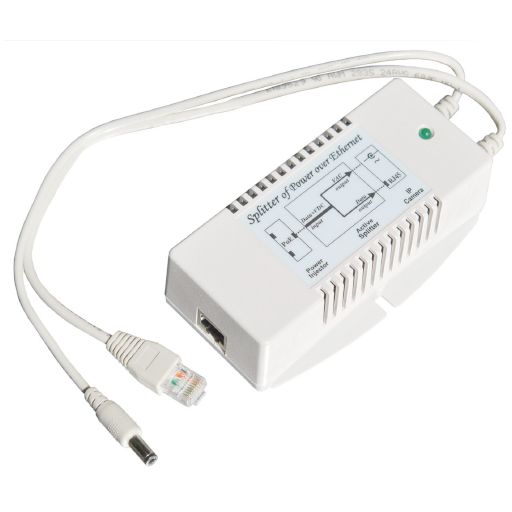

The Tycon Power POE-SPLT-2424AC-G Active splitters are unique Power over Ethernet adapters which convert a DC PoE input voltage to regulated 24VAC output. The output is provided on a 5.5/2.1mm DC Barrel Connector. Compatible with Gigabit Ethernet, inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage. Requires a 4pair PoE input to achieve 52W output. Output is 60Hz Square Wave. Product Features • Converts 24V Passive PoE input to 24VAC 52W output • Runs cameras and other 24VAC devices from 24VDC PoE and battery systems • Short Circuit, Over Current and Over Voltage Protection Product Specifications • Output Voltage: 24VAC • Output Current: 2.17A @24VAC • Output Power: 52W with 4 pair PoE input • Output Connector: 5.5/2.1mm DC Barrel (14” Cable) • Load Regulation: 5% • Line Regulation: 1% • POE Input (RJ45): 18-36V Passive PoE (4 pairs) • Ethernet Speed: 10/100/1000MB • Efficiency: 80% Min • Isolation Resistance: 100M Ohms Minimum • Operating Temperature: -25 to +50°C (-13 to +122°F) • Operating Humidity (RH): 5% - 90% non-condensing • Storage Temperature: -40 to +85°C (-40 to +185°F) • Warranty: 3 Years Product Includes (1) POE-SPLT-2424AC-G Splitter Product Datasheet POE-SPLT-2424AC-G Data Sheet
