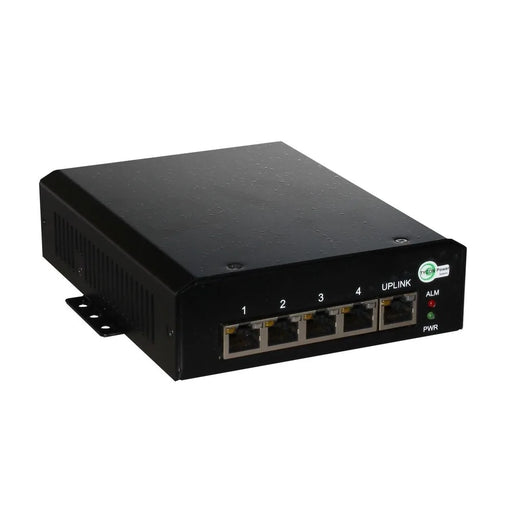

Tycon Power 5-Port High Power Gigabit 802.3at PoE Switch with 12-36V DC Input

TP-SW5G-24HP by TYCON Systems
Sold out
Original price $289.95 - Original price $289.95
Original price
$289.95
$289.95 - $289.95
Current price $289.95
The Tycon Power TP-SW5G-24HP Power Over Ethernet (PoE) 10/100/1000Mb switch contains five ports providing high speed and a wattage of up to 35 w of PoE out each port that then releases out of either the 24V input at 140W or the 12V input at 70W. You can truly go the distance, that is, 328 feet, and still have your IP phone and security camera systems and wireless access points and client devices operating. This device operates with the highest PoE power out of all of the other TP-SW5 models for guaranteed efficiency. Product Applications • Wireless Access Points and Client Devices • IP Phone and Security Camera Systems • Power multiple devices from 1 data cable Product Features • Automatic MDI/MDI-X Crossover • Automatic Speed and Duplex Sensing • 1K Self Learning MAC Address Table • Compact Size • High Temperature Operation 75°C • Includes DIN rail mounting kit • IEEE 802.3af/at High Power 10/100/1000Mb PoE Switch • Built-in Surge Protection • Remotely Power Equipment thru CAT5 Cable up to 100m • Up to 35W per Port, 140W total per switch with 24V input. Product Specifications: • DC Power Input: 24VDC (12V to 36V), Dual DC Inputs, Reverse Polarity Protected. Also Accepts PoE power input on Port 5 • Ports: 1 data/PoE input and 4 data/PoE, automatic crossover and polarity • Transmission speed:1000Mbps / 100 Mbps /10 Mbps Auto-negotiation • Switch technology: store-and-forward • Protocols: CSMA/CD • Flow control: IEEE802.3x(full-duplex), Back Pressure(half-duplex) • Data transmission rate: 1488000pps for 1000baseT, 148800pps for 100baseT, 14880pps for 10baseT • Address table: 1K MAC, self-learning • Connector: Shielded RJ45 • Dimensions:159 x 118 x 40mm (6.3 x 4.6 x 1.6”) w/ a metal housing • Weight: 383g (13.5oz) Product Includes • Tycon Power 5-Port High Power Gigabit 802.3at PoE Switch • DIN Rail mounts Technical Data Sheet: Tycon Power TP-SW5G-24HP Data Sheet User Guide: Tycon Power TP-SW5G-24HP Data Sheet
