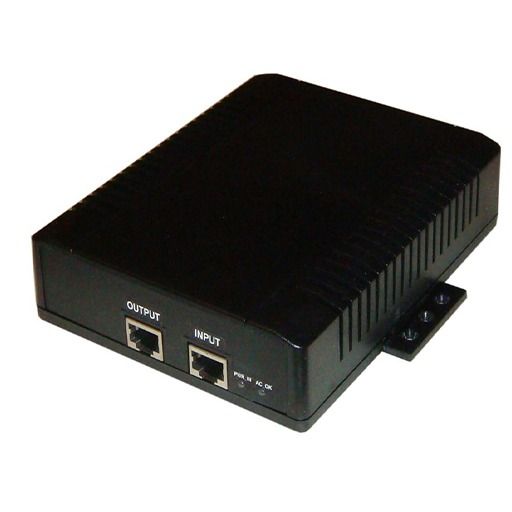

Tycon Power 48V PoE Input 24VAC 3.3A Output 80W Power Splitter

POE-SPLT-4824AC-GBT by TYCON Systems
Sold out
Original price $133.95 - Original price $133.95
Original price
$133.95
$133.95 - $133.95
Current price $133.95
The Tycon Power POE-SPLT-4824AC-GBT Active splitter is a unique Power over Ethernet adapter which converts a DC PoE input voltage to regulated 24VAC output. The output is provided on a wire terminal connector which accepts up to 12AWG wire. Compatible with Gigabit Ethernet, inputs and outputs are isolated. It has various protections for surge, short circuit, overload and overvoltage. Requires a 4pair PoE input or output can only be 40W. The LEDs indicate which pairs are powered. A flashing LED indicates only 2 pairs powered. Product Features • Converts 802.3at/bt PoE input to 24VAC 80W output • Runs cameras and other high power 24VAC devices from 48VDC PoE and battery systems • Short Circuit, Over Current and Over Voltage Protection • High Temperature Operation, DIN Rail Mounting Product Specifications • Output Voltage: 24VAC • Output Current: 3.34A @24VAC • Output Power: 80W with 4 pair PoE input • Load Regulation: 5% • Line Regulation: 1% • PoE Input (RJ45):       • 802.3bt or passive PoE       • 40 - 60VDC (4 pairs) • Ethernet Speed: 10/100/1000MB • Efficiency: 85% Min. • EMC Standards: FCC Class B NE55022 Class B, CE • Isolation Voltage: 1500VDC • Isolation Resistance: 100M Ohms Minimum • Operating Temperature: -40 to +70°C (-40 to +158°F) • Operating Humidity (RF): 5% - 90% non-condensing • Storage Temperature: -40 to +85°C (-40 to +185°F) • Warranty: 3 Years Product Includes (1) Tycon Power 48V Power Splitter Product Documentation Tycon 48V Splitter Data Sheet
