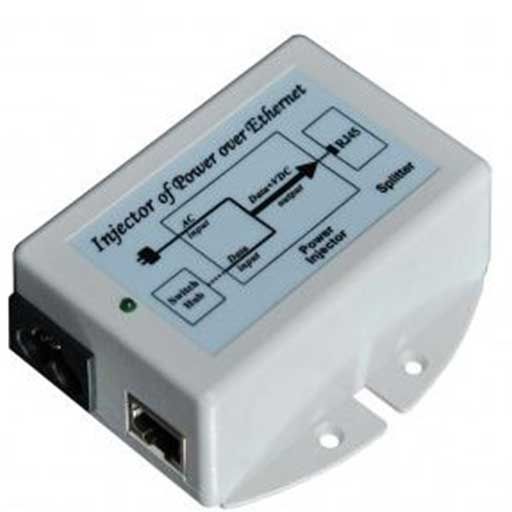

Tycon Power 48V 24W Gigabit POE Power Source/Inserter With Surge Protection

TP-POE-48G by TYCON Systems
Sold out
Original price $35.95 - Original price $35.95
Original price
$35.95
$35.95 - $35.95
Current price $35.95
The TP-POE-48G Gigabit Power Over Ethernet Power Source/Inserter offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet). The POE inserters have built in Ethernet surge protection which eliminates the need for a standalone Ethernet surge protector. The TP-POE-48G are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 24VDC at the output. They have various protections for surge, short circuit and overload. Output is 48VDC with load regulation within 5%. Product Features • Remotely Power Equipment thru CAT5 Cable up to 100m • Autoranging Switching Power Supply • Short Circuit, Over Current and Over Voltage Protection • High Temperature Operation • Compact size • Floor / Desktop / Wall Mount • CE/FCC/UL/CB Approved Product Specifications • AC Input: 90-264VAC 47-63Hz • Max Inrush Current (120VAC): 30A • Efficiency (min): 85% • Line / Load Regulation: 1% / 5% • Ripple / Noise: 1% / 2% • Protections: Over-Voltage, Short Circuit, Over-Current • Surge Protection:     Ethernet: 4 Pin (1/2, 3/6) Common Mode Protection, 7.5V Clamping Voltage 5.4A (8/20us) Peak Pulse Current, <2pF Shunt Capacitance     AC Input: Operating Voltage = 385VDC, Clamping Voltage = 775VDC, Maximum discharge current is 1200A(8/20us) • EMC Standards: FCC Class B EN55022 Class B • Safety Standards: UL1950, CSA 22.2 & TUV EN60950 • Environmental Standards: RoHS • Operating Temperature: -30 to 60°C (-22 to 140°F) • Operating Humidity: 5% - 90% • Storage Temperature: -40 to 80°C (-40 to 176°F) • PoE Output Voltage: 56V • Output Current: 0.9A • Output Power 50W • PoE Type: Passive • Dimensions: 125 x 75 x 36mm (3.4 x 3 x 1.4") • Weight: 300g (10.6oz) Product Data Sheet Tycon Power Learning Center Presentation
