Tycon Power 48V 0.5A 24W Gigabit Passive PoE Power Inserter

TP-POE-48G-24W by TYCON Systems
Original price $19.95 - Original price $19.95
Original price
$19.95 - $19.95
Current price $19.95

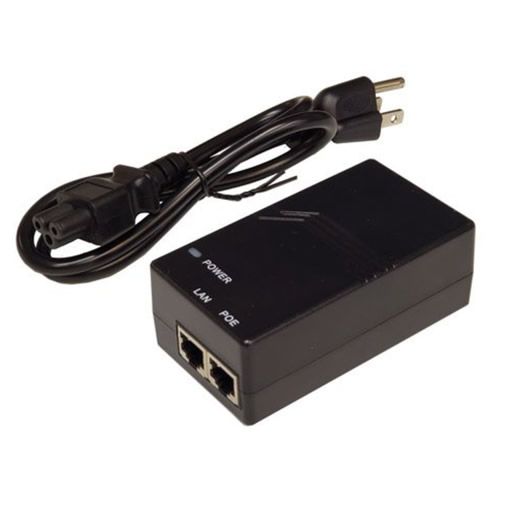

The Tycon Power TP-POE-48G-24W is a compact 10/100/1000MB (GigE) desktop passive PoE inserter with 120/240VAC auto-ranging input. The reliable UL Listed inserter has an output that is Mode B (4,5+ 7,8-) Passive PoE at up to 24W. It comes with a 3 prong 2’ North American power cord with IEC C5 plug.

Product Features

• 10/100/1000Mb Data Rate

• CAT5 (or higher) for Gigabit

• Compact Size, Shielded RJ45 Jacks

• I.T.E. Power Supply, UL Listed

Product Specifications

• AC Input Voltage: 100-240VAC 50/60Hz

• Output PoE Voltage: 48VDC +/-5% Passive PoE, Mode B (Pins 4,5+ 7,8-)

• Maximum Load: 0.5A (24W) Max

• Protections: Short Circuit, Overcurrent, Surge/ESD (8kV)

• Efficiency: 86.2% Minimum, Energy-Efficiency Level VI (DoE VI & ERP VI)

• Ripple and Noise: 120mV p-p

• Data Rate: 10/100/1000Mbps (Gigabit Ethernet)

• No Load Consumption: 0.1W Max

• Operating Temperature: -20 to +50°C

• Storage Temperature: -30 to +80°C

• Operating Humidity: 10% to 90% non-condensing

• MTBF: 120,000Hrs

• Certifications: UL, CE, FCC | IEC 60065, IEC60950, UL60950-1, EN55022, EN55013, EN55024, EN55020, EN61000-4-5, EN61000-4-4, EN61000-4-5

• Connectors: RJ45 Shielded Jacks

• Ethernet Cable Compatibility: CAT5 Gigabit to 100m

• Warranty: 3 Years

Product Includes

(1) Tycon Power PoE Inserter

(1) Power Cable
