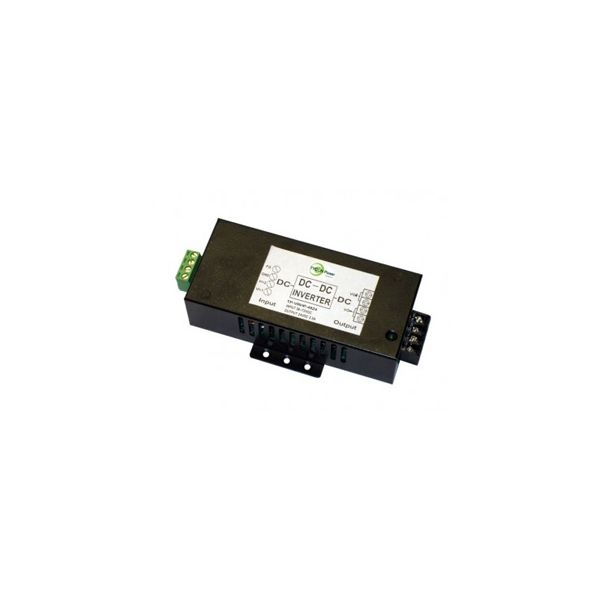

Tycon Power 36-72VDC Input, 24VDC 2.5A 60W Output Voltage Converter

TP-VRHP-4824 by TYCON Systems
Original price $114.95 - Original price $114.95
Original price
$114.95
$114.95 - $114.95
Current price $114.95
The TP-VRHP-4824 is a 60W voltage converter/regulator which accepts an input of plus or minus 36VDC to 72VDC and provides a regulated output of 24VDC @ 2.5A 60W. These units are perfect for providing 24VDC voltage from -48VDC telecom power. Product Features • High Output, Short Circuit Protected • Metal Enclosure, DIN Rail Mounting • Industrial Temperature Operation • Most Models Isolated Input to Ouput Product Applications • Security Systems • Remote Power Systems • Telecom Applications • Wireless Base Stations Product Specification • DC Input Voltage Range: 36V to 72VDC • DC Voltage Output: 24VDC @ 3A • Maximum Power: 70W • Efficiency: >85% • Load / Line Regulation: 5% / 1% • Ripple / Noise: 2% / 5% • Isolation Voltage / Ohms: 1500VDC Min. / 100M Ohms Min • Wire Gauge: 12AWG Max • Protections: Short Circuit, Overvoltage, Overload • Operating Temperature: -22 to 249°F (-30 to 65°C) • Operating Humidity: 0 to 90% RH • Size: 5.24 x 3 x 1.5" (133 x 75 x 38mm) • Weight: 10.5oz (298g) Product Documentation Product Data Sheet Tycon Power Learning Center Presentation
