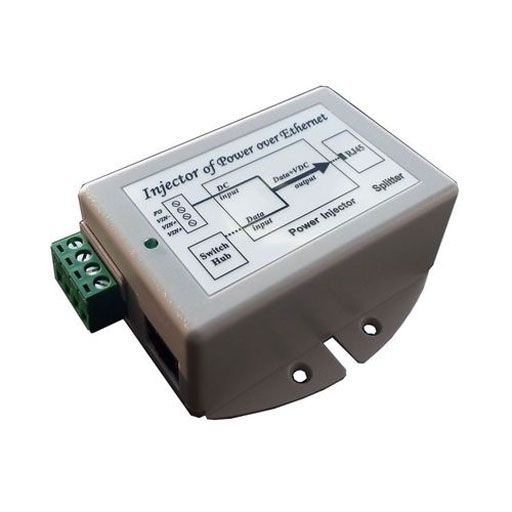

Tycon Power 36-72VDC IN 802.3af 48VDC OUT 16.8W Gigabit DC to DC Converter/POE Inserter

TP-DCDC-4848GD by TYCON Systems
Sold out
Original price $59.95 - Original price $59.95
Original price $59.95
$59.95
$59.95 - $59.95
Current price $59.95

The Tycon Power Gigabit Series of DC to DC converters, TP-DCDC-4848GD, are a low cost and high efficiency solution for those requiring IEEE802.3af Power over Ethernet from a +48VDC or -48VDC voltage source like a battery system or telecom power source. The Tycon Gigabit DC to DC Converter accepts gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. The Tycon Gigabit DC DC Converter works by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 17W.


Product Features
  • Input Voltage 48VDC
  • IEEE 802.3af Compliant
  • Dual Inputs for Connecting 2 Power Sources
  • Integrated 10/100/1000MB PoE Inserter
  • High Power up to 17W
  • Low Self Consumption Power
  • Short Circuit, Over Current and Reverse/Over Voltage Protect
  • High Temperature Operation
  • Compact Size – Maximize Available Space
Applications
  • 48V Battery Systems, Telecom Applications
  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems
Product Specifications
  • DC Input Voltage ± 36 to 72VDC
  • DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
  • DC Output Voltage 48V (802.3af)
  • Data in & Data/POE Output Connector RJ45 (Shielded)
  • Output Current (max) 0.35A
  • Output Power (max) 17W
  • Isolation PRI to SEC 1500VDC, SEC to GND 500VDC
  • Self Consumption Power <1W
  • Efficiency (min) 75%
  • Line Regulation 1%
  • Load Regulation 5%
  • Ripple 1%
  • Noise 1%
  • EMC Standards FCC Class B EN55022 Class B
  • Safety Standards UL1950, CSA 22.2 &TUV EN60950
  • Operating Temp -30°C to +60°C (-22°F to +140°F)
  • Operating Humidity 5% - 90%
  • Storage Temp -40°C to +80°C (-40°F to +176°F)
  • MTBF (Mean Time Between Failure) 111,863 Hours
  • Dimensions (L x W x H) 85 x 76 x 36mm (3.4 x 3 x 1.4”)
  • Weight 134g (4.7oz)
  • Warranty 3 Years
