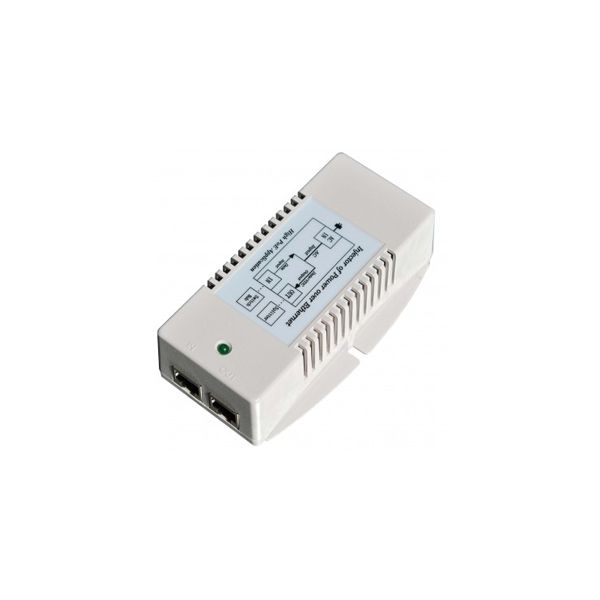

Tycon Power 24V 24W High Power Gigabit POE Power Source/Inserter

TP-POE-HP-24G by TYCON Systems
Original price $69.95 - Original price $69.95
Original price $69.95
$69.95
$69.95 - $69.95
Current price $69.95

The TP-POE-HP24G High Power Over Ethernet Power Sources offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions.


They accept Gigabit data-in to a shielded RJ45 Jack and provide Gigabit data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).


The TP-POE-HP are auto ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply 5% regulated 24V DC voltage at 36W on the output. They have various protections for surge, short circuit and overload.


Product Features:
  • Remotely Power Equipment thru CAT5 Cable up to 100m
  • Auto ranging Switching Power Supply
  • Short Circuit, Over Current and Over Voltage Protection
  • High Temperature Operation
  • Compact size
  • Floor / Desktop / Wall Mount
  • CE/FCC/UL/CB Approved
Product Specifications
  • AC Input: 90-264VAC 47-63Hz
  • Max Inrush Current (120VAC): 30A
  • Efficiency (min): 85%
  • Line / Load Regulation: 1% / 5%
  • Ripple / Noise: 1% / 2%
  • Protections: Over-Voltage, Short Circuit, Over-Current
  • Surge Protection:
        Ethernet: 4 Pin (1/2, 3/6) Common Mode Protection, 7.5V Clamping Voltage 5.4A (8/20us) Peak Pulse Current, <2pF Shunt Capacitance
        AC Input: Operating Voltage = 385VDC, Clamping Voltage = 775VDC, Maximum discharge current is 1200A(8/20us)
  • EMC Standards: FCC Class B EN55022 Class B
  • Safety Standards: UL1950, CSA 22.2 & TUV EN60950
  • Environmental Standards: RoHS
  • Operating Temperature: -30 to 60°C (-22 to 140°F)
  • Operating Humidity: 5% - 90%
  • Storage Temperature: -40 to 80°C (-40 to 176°F)
  • PoE Output Voltage: 24V
  • Output Current: 1A
  • Output Power 24W
  • PoE Type: Passive
  • Dimensions: 125 x 75 x 38mm (4.9 x 3 x 4.5")
  • Weight: 300g (10.6oz)The TP-POE-HP24G High Power Over Ethernet Power Sources offered by Tycon Power Systems are quality power sources for years of reliable operation even in the toughest conditions.
