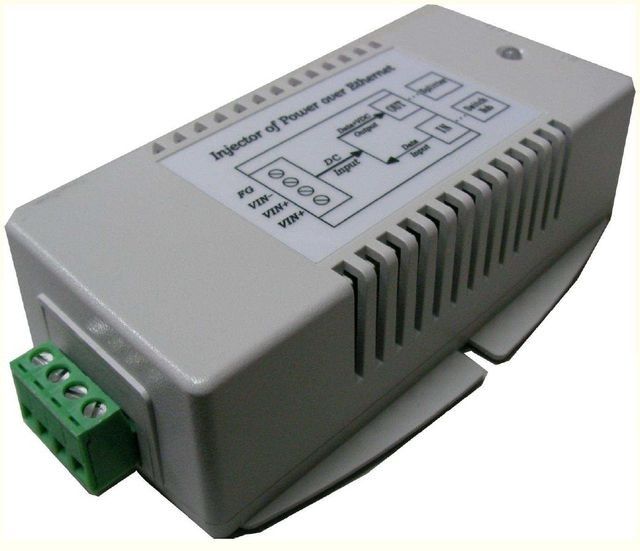

Tycon Power 18-36VDC In, 56VDC Out 30W DC to DC
TP-DCDC-2448-HP
by TYCON Systems
Sold out
Original price
$59.95
-
Original price
$59.95
Original price
$59.95
$59.95
$59.95
-
$59.95
Current price
$59.95
The TP-DCDC-2448-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC Power Over Ethernet voltage from a 24V battery system.
They have an integrated POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. The input voltage must be between 18VDC and 36VDC.
They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.
They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).
They have various protections for surge, short circuit and overload. The units have power output of 30W.
Features
Input voltage 18-36VDC; output 56VDC
Integrated POE Inserter
High Power 30W
Short circuit, over current and over voltage protection
High temperature operation
Removable wire terminal Input for up to 12AWG wires
Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)
Weight: 134g (4.7oz)
Product Package Includes:
1 - Tycon Power 18-36VDC In, 56VDC Out 30W DC to DC converter
