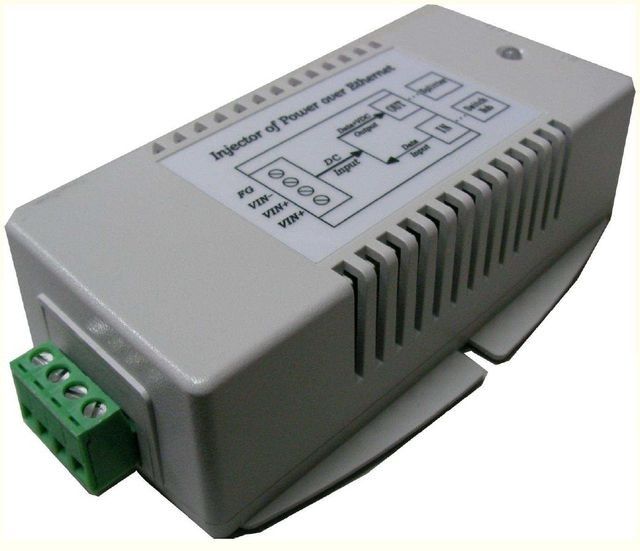

Tycon Power 18-36VDC In, 56VDC 70W Passive POE Out DCDC

TP-DCDC-2456G-VHP by TYCON Systems
Sold out
Original price $117.95 - Original price $117.95
Original price
$117.95 - $117.95
Current price $117.95
The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. Features - Remote power or backup power for Ubiquiti airFiber™ antennas - Input Voltage 18-36VDC; Output 56VDC Passive POE - Integrated POE Inserter - High Power 70W - Short Circuit, Over Current and Over Voltage Protection - Industrial Temperature Operation - Removable Wire Terminal Input for up to 12AWG wires Dimensions: 125 x 75 x 38mm (4.9" x 3" x 1.5") Weight: 255g (9oz) Product Data Sheet Tycon Power Learning Center Presentation
