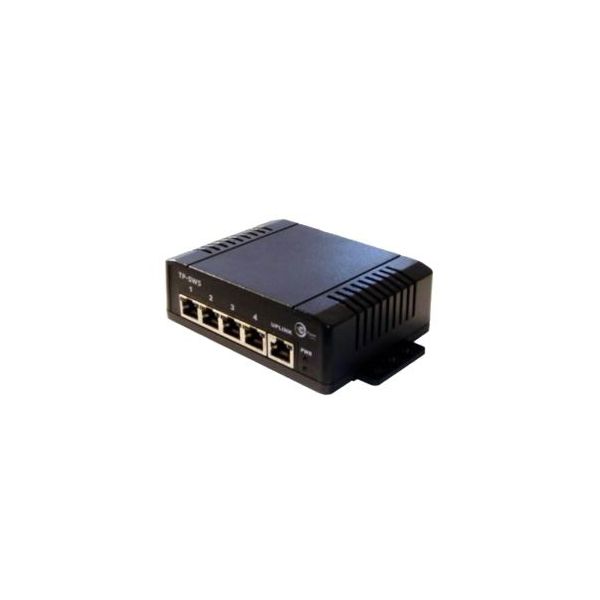

Tycon Power 12-56V 5 Port High Power POE 10/100BASET Switch. Non 802.3af Compliant

TP-SSW5-NC by TYCON Systems
Sold out
Original price $139.95 - Original price $139.95
Original price $139.95
$139.95
$139.95 - $139.95
Current price $139.95

Universal Voltage 10/100 POE Switch. The switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. This model is very compact at only 4 x 5 x 1.5". 2A per port.


Product Features
  • High Power 10/100 POE Switch
  • Remotely Power Equipment through CAT5 Cable up to 100m
  • Up to 2A per Port
  • Built-in Surge Protection
  • Automatic MDI/MDI-X Crossover
  • Automatic Speed and Duplex Sensing
  • 1K Self Learning MAC Address Table
  • Compact Size
  • High Temperature Operation
  • CE and FCC Certification
Product Applications
  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems
  • Power multiple devices from 1 data cable
Product Specifications
  • Ethernet Standard: IEEE802.3 / IEEE802.3u
  • Ports: 1 data/POE input and 4 data/POE, automatic crossover and polarity
  • Transmission Speed: 100 Mbps / 10 Mbps Auto-negotiation
  • Switch Technology: Store and Forward
  • Protocol: CSMA/CD
  • Flow Control: IEEE802.3x(full-duplex), Back Pressure(half-duplex)
  • Data Transmission Rate: 148800pps, 14880pps
  • Address Table: 1K MAC, self-learning
  • Connections: Shielded RJ45
  • POE Output Ports: Port 1-4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)
  • Maximum POE Power: 2A per port
  • POE Auto Detection: Passive POE
  • POE Protection: Over Temperature, Over Current, Over/Under Voltage
  • DC Power Input: 12V to 57VDC, Dual DC Inputs, Reverse Polarity Protected
  • Self Consumption: <1W
  • Operating Temperature: -40 to +85°C (-40 to 185°F)
  • Operating Humidity (RH): 5% - 90% (non-condensing)
  • Storage Temperature: -55 to +105°C (-67 to +221°F)
  • Dimensions: 90 x 118 x 40mm (3.5 x 5.6 x 1.6")
  • Weight: 182g (6.7oz)
