Tycon Systems 10-32VDC In 5VDC 3A Regulated Out Voltage Regulator [TP-VR-2405-DC]

SKU TP-VR-2405-DC
Original price $24.95 - Original price $24.95
Original price $24.95
$24.95
$24.95 - $24.95
Current price $24.95

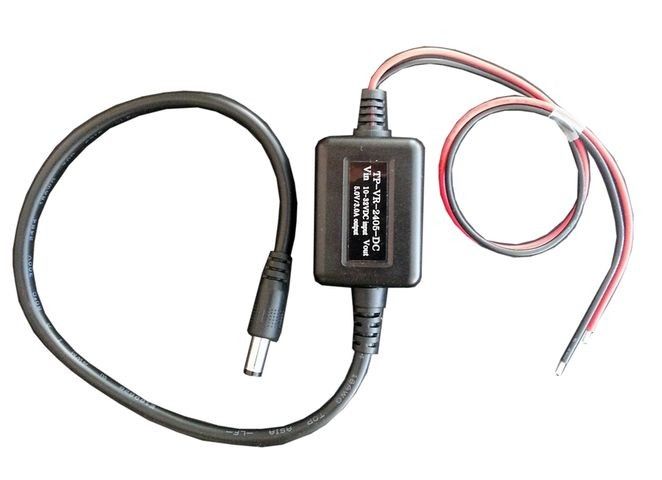

The TP-VR-2405-DC is sealed DC to DC regulator which offers high output regulation in a compact sealed enclosure. They have 12" long 18AWG leads on input and 14" 18AWG wire with 5.5/21 DC Barrel connector on output. Product Features • Compact Size • High Output, Short Circuit Protected • Sealed Design • 12" 18AWG Input Lead Wires • 14" 18AWG Output DC Connector Wire Product Applications • Security Systems • Remote Power Systems • Marine Applications • Wireless Base Stations Product Specifications • DC Input Voltage Range: 10V to 32VDC • DC Voltage Output: 5VDC @ 3A • Maximum Power Dissipation: 15W • Efficiency: 80% • Load / Line Regulation: 5% / 1% • Ripple / Noise: 2% / 5% • Wire Gauge: 18AWG • Lead Wire Length: 12" 2 Wire Input, 14 DC Output • DC Connector: 5.5/2.1mm (DC Plug Barrel Connector) • Operating Temperature: -40 to 149°F (-40 to 65°C) • Operating Humidity: 0 to 99% RH • Size: 2.75 x 1.25 x 1" (70 x 32 x 25mm) • Weight: 1.5oz (43g) Product Documentation Product Data Sheet Tycon Power Learning Center Presentation
