Siklu EtherHaul Mounting Kit for all small ODUs & 16cm Antenna for Elevation up to +60/-45 degree (VEHM028)

Siklu EtherHaul Mounting Kit for all small ODUs & 16cm Antenna for Elevation up to +60/-45 degree (VEHM028)

EH-MK-SM by Siklu
$146.95 - $146.95
$146.95
$146.95 - $146.95
$146.95

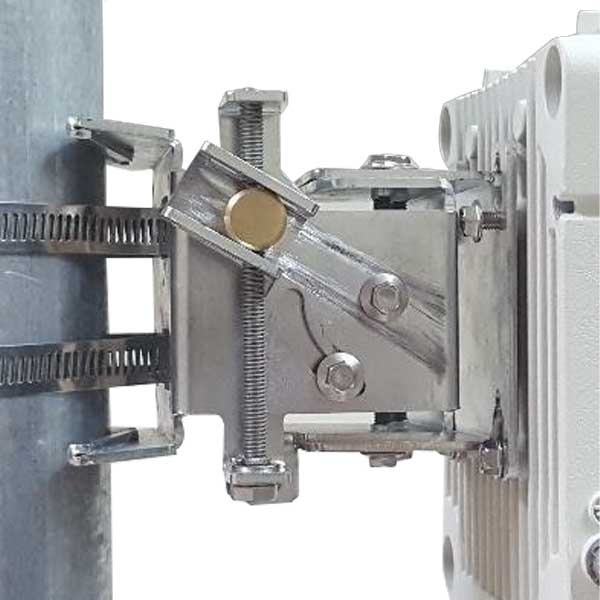

Siklu EtherHaul Mounting Kit for all small ODUs & 16cm Antenna for Elevation up to +60/-45 degree. The EH-MK-SM is designed for precise installations of small form factor EtherHaul V-Band or E-Band radios with 0.5ft antenna.


Product Specifications:

  • Compatibility Antenna/ODU: EH--ANT-0.5ft, EH-500TX, EH-600 series (integrated antennas) EH-7x0 series
  • Azimuth adjustment ±10°, fine
  • Elevation adjustment ±60°, fine
  • Mounting Pipe Diameter: 50–120 mm (2.0-4.7 in)
  • Wind speeds: 160 Km/h (100 mph), 220 Km/h (137 mph)
  • Dimensions 91 x 115 mm (3.6 x 4.5 inch)
  • Weight 0.8Kg (1.8 lbs.)
  • Temperature -45 to +70°C (-49 to +158°F)
  • Humidity 100%
  • Regulatory Compliance CE (RoHS)
Product Documentation:


EH-MK-SM

Siklu Q4 2021 Product Reference Guide
