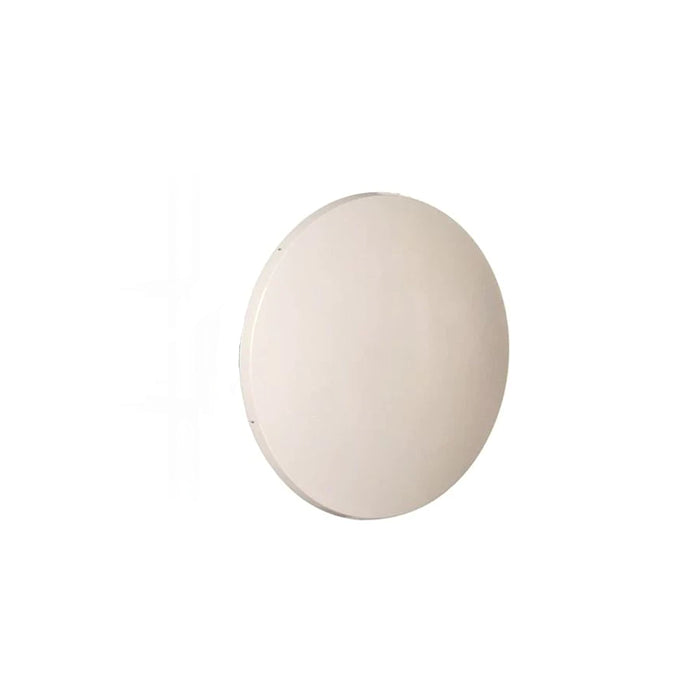

Siklu EtherHaul E-Band 70/80GHz 2ft Heated Antenna

EH-ANT-2ft-H by Siklu
Original price $1,237.95 - Original price $1,237.95
Original price
$1,237.95 - $1,237.95
Current price $1,237.95

Product Specifications:

  • Compatibility: EH-710T/710TX (EXT versions), EH-1200T/TX, EH-1200FX, EH-2500F/FX, EH-8010FX
  • Frequency Range: 7GHz – 86GHz
  • Regulatory Compliance:
  • ETSI: EN 302 217-4-2 V1.5.1 Class 3
  • FCC: 47CFR101
  • Gain: 50dBi ± 2dB
  • 3dB Beam: 0.5°
  • Polarization: Linear Vertical / Horizontal
  • RF Input power: 10W (max)
  • Interface: Circular waveguide E-band
  • Radome: ABS
  • DC input power: 48VDC, 55W (screw terminal inside the controller)
  • DC input cable: 1 pair, diameter 0.79/0.197in (2/5mm) (min./max.). Cabling options in the next table
  • Temperature control: The controller enables the heater before temperatures fall below freezing, and disables the heater after the temperatures have risen above freezing.
  • Disable function (force-off): EtherHaul 8010 radios can force the controller off (a USB cable is included to connect the controller to the radio).
  • Distance antenna to controller:
  • Size (inches): 5.9"x4.3"x2.7” (15cmx11cmx7cm)
  • Weight: 1.2 Lbs (550 gr)

Product Includes:

(1) Siklu EtherHaul 2ft E-Band Heated Antenna
