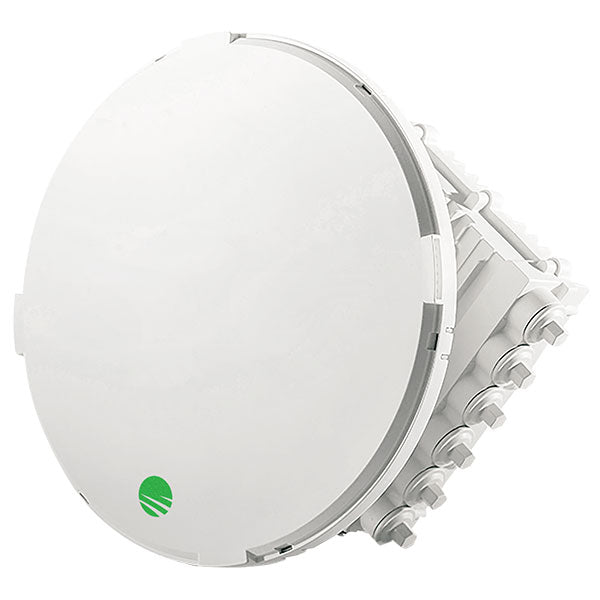

Siklu EtherHaul-2500FX 1 to 2Gbps 71-76GHz / 81-86GHz E-Band Hi-Band Radio

EH-2500FX-ODU-H-EXN by Siklu
Sold out
Original price $2,863.95 - Original price $2,863.95
Original price
$2,863.95
$2,863.95 - $2,863.95
Current price $2,863.95



The Siklu EH-2500FX provides up to 2Gbps capacity with extended reach for accelerating broadband. Siklu's E-Band radio delivers fiber-like wireless solutions with expanded reach, while creating substantial CAPEX savings.

Product Applications:

  • GTTH - Gigabit to the Home
  • Business Broadband
  • Video Surveillance Connectivity (CCTV)
  • Campus Connectivity
Product Specifications:
  • Frequency: 8GHz to 86GHz, FDD
  • Modulation and Adaptive Rate: BPSK-1/BPSL-2/QPSK/QAM16/QAM32, Hitless adaptive bandwidth, coding and modulation, boost gain by up to 23dB
  • Throughput: 1000Mbps @ 250MHz, 2000Mbps @ 500/750/1250MHz
  • Link Budget: 2Gbps @ 500MHz: 161 / 175dB (incl. 1ft./2ft. antenna gain), 2Gbps @ 750MHz: 164 / 178dB, 2Gbps @ 1250MHz: 170 / 184dB
  • Antenna Options: 1ft. (31 cm) - 43dBi antenna gain, 2ft. (65 cm) - 50dBi antenna gain
  • Reach: Typical: 1.5 miles, Maximum: 3 miles (rain zone-dependent)
  • Interfaces: 4 x GE ports: 2 x copper RJ45 + 2 x SFP
  • Power Supply: 36-57 VDC (flexible grounding); PoE++ (IEEE 802.3at++), 45W without PoE-Out; 60W with PoE Out
  • PoE-out: Port 2: 13W (IEEE 802.af)
  • Ethernet Features: MEF 9, 14, and 21, IEEE 802.1d transparent bridging, 8-level QoS aware forwarding with SF/WFQ & MPLS EXP options, Redundancy and networking: LAF/LACP, ERP (ITU-T G.8032), MAC learning, 16K jumbo frames
  • Management and Provisioning: In-band, out-of-band management, Web GUI (one-click configuration of local and remove units) Embedded CLI, SNMPv2, TACACS+, RADIUS, Zero-touch turn up, Link OAM & Connectivity Fault Management (CFM): IEEE802.3ag & IEEE802.1ag, Performance Monitoring: ITU-T Y.1731, IPERF TCP/UDP capacity tester
  • Topologies: Ring, daisy-chain, mesh
  • Conformance: Radio: USA FCC Part 15.101 & ETSI EN 302 217, EMC: USA FCC 47CFR.part 15 & ETSI EN 301 389, Safety UL/EN 60950
  • Operating Temperature: -45 to 55°C (-49 to 131°F)
  • Ingress Protection Rating: IP67
  • Dimensions: ODU + 1ft antenna (Dia. x Depth): 12.2"x4.3" (31cmx13cm), ODU + 2ft antenna (Dia. x Depth): 25.6"x15.35" (65cmx37cm)
  • Weight: ODU + 1ft antenna: 9.9lbs (4.5 kg), ODU + 2ft antenna: 20.7lbs (9.4 kg)
