Shireen Shielded CAT5e FTP Outdoor Cable (1000ft Spool)

DC-1021 by Shireen
Sold out
Original price $208.95 - Original price $208.95
Original price
$208.95
$208.95 - $208.95
Current price $208.95

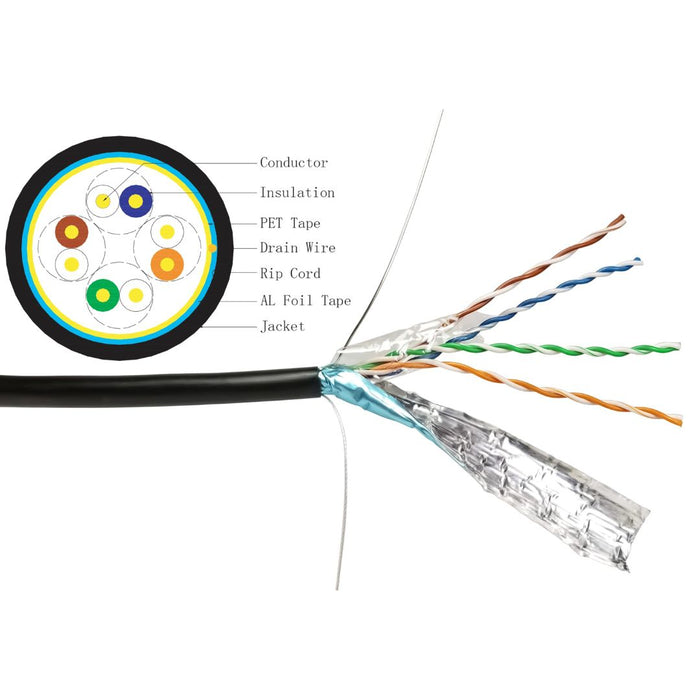

Shireen DC-1021 is excellent for use in all outdoor applications, including networking, data transfer, and phone lines. It features 4 twisted pairs of 24AWG wire with aluminum foil shielding and drain wire, and supports Gigabit speeds. Shielded cable is a necessity when you're installing near strong electrical interference. The shielding on this cable will help protect your data from from interfering signals.

General Specifications

  • Length of Lay: <30mm
  • Mylar Tape: 0.03x18mm

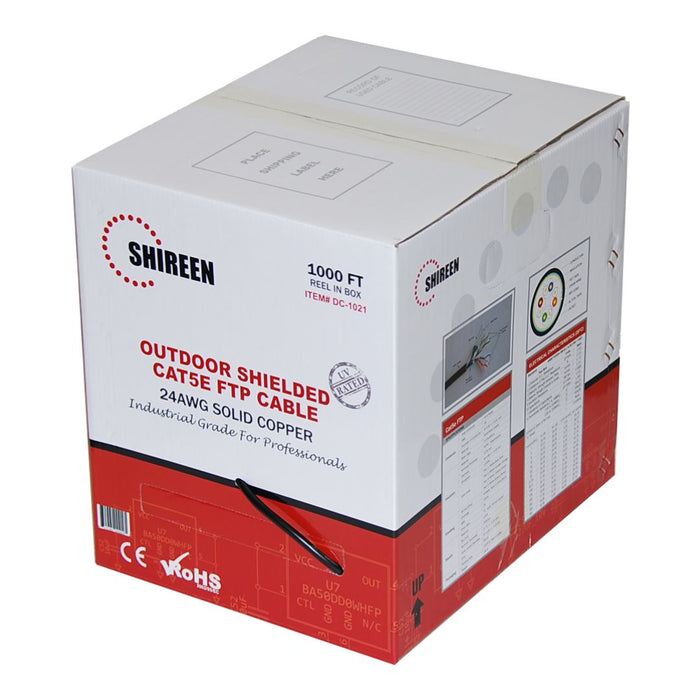

  • Packing: 1000ft Reel-in-a-Box
Conductor Specifications
  • Pairs: 4
  • Total Conductor: 8
  • AWG: 24
  • Diameter of Conductor: ∅0.50±0.01mm
  • Material: Solid Bare Copper
  • Elongation: ≥15%
Insulation Specifications
  • Material: HDPE - Polyethylene
  • Nominal Thickness: 0.24mm
  • Diameter: ∅0.95±0.05mm
  • Elongation: ≥300%
Shielding Specifications
  • Vertical Wrap: Aluminum-Mylar Tape 0.055x18mm
  • Coverage %: 100%
  • AWG: 24
  • Drain Wire: TC - Solid Tinned Copper
Sheath Specifications
  • Material: Outer: LDPE
  • Rip Cord: 200Dx3
  • Nominal Thickness: 0.75±0.03mm
  • O.D: ∅6.50±0.3mm
  • Color: Black
Electrical Characteristics
  • Conductor DC Resistance: ≤9.5Ω/100,
  • Unbalance of Pair DC Resistance: ≤2.5%
  • Dielectric Strength between Pairs: ≤2.0kV/min
  • Insulation Resistance: ≥5000MΩ-km
  • Capacitance: ≤5.6nF/100m
  • Unbalance of Capacitance: ≤330pF/100m
  • Characteristic Impedance:
         1 to 100MHz: 100±15
         100 to 200MHz: 100±25
         200 to 350MHz: 100±35
