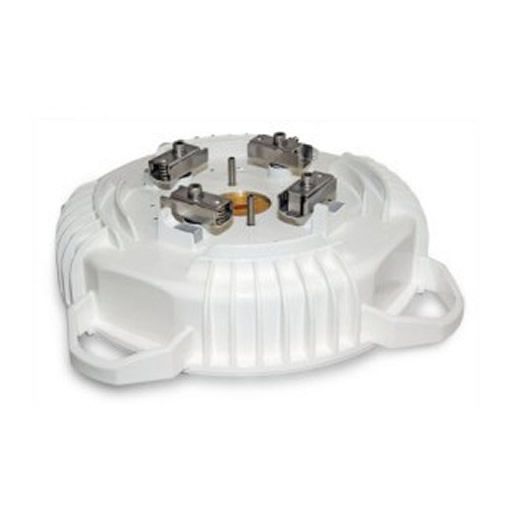

SAF Tehnika PhoeniX 11GHz CFIP ODU 4-366Mbps 490MHz 05HA

S11RPU05HA by SAF Tehnika
Sold out
Original price $3,335.95 - Original price $3,335.95
Original price
$3,335.95
$3,335.95 - $3,335.95
Current price $3,335.95
Log in or create a new user account to see our pricing. The price will not display properly unless you are logged in. This product typically ships within 1 to 10 business days. Please contact Baltic Networks for availability at 1-630-929-3610 SAF Tehnika CFIP PhoeniX 11GHz ODU is Intended for classic telecom architecture CFIP PhoeniX split mount system is designed to fit in a classic telecom architecture with a radio located outdoor and a sheltered indoor unit. CFIP PhoeniX also enables transition from TDM networks to hybrid TDM/IP networks providing up to 20E1 + GigE. Total maximum capacity is up to 363 Mbps full duplex. Features • High Capacity Throughput supporting 256QAM modulation and 56 MHz channel bandwidth • Modern components and latest technologies applied in CFIP PhoeniX make it one of the most energy efficient equipment on the market • Industrial grade design with fanless cooling system and split mount architecture • Flexible TDM/IP architecture allows easy transition from TDM-only to hybrid or IP-only network • Built-in managed Gigabit Ethernet switch, QoS, up to 4093 concurrent VLANs Specifications • Frequency Bands:6/7/11/13/15/18/23/38 GHz • Channel Bandwidths: 5, 10, 20, 30, 40, 50, 56 MHz • Modulation: 4QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM with hitless ACM • Capacity: up to 363 Mbps • Configurations: 1+0, 1+1 (HSB, SD, FD), 2+0, 3+0, 4+0 Ethernet aggregation • Ethernet: 4x 1000Base-T, RJ-45 • E1/T1: 20x E1/T1, RJ-45 • Service Ports: AUX RS-232, RSSI port for RSL, Serial port for MNGT configuration, EOW, 1+1 protection port, Alarm port • Connection to ODU: N-Type Female M• Management: MIB, SNMP v1/v2c, Web GUI, Telnet, FTP/TFTP, Serial terminal • Performance Graphs: Rx level, Tx level, Radial MSE, LDPC decoder stress, Modem temperature, IDU temperature, ODU temperature, Power supply input voltage, Power supply power consumption, equalizer graph , uptime counter • Ethernet Switch: Managed Gigabit Ethernet Layer 2 • QoS: 64 level DiffServ (DSCP) or 8 level 802.1p mapped in 4 prioritization queues with VLAN support • VLAN Support: 802.1Q (up to 4K VLAN entries) • Spanning Tree: 802.1D-2004 RSTP, 802.1Q-2005 MSTP • IDU Operational use: Conforms to ETSI EN 300 019 Class 3.1E, IP20, NEMA 1 • Max. power consumption: for IDU: 20-30W for CFIP ODU: SP 13-27W, HP 21-39W Product Includes (1) CFIP Phoenix ODU (1) Power Cord (1) User Manual Product Documentation S11RPU05HA Data sheet S11RPU05HA PhoeniX Series Manual
