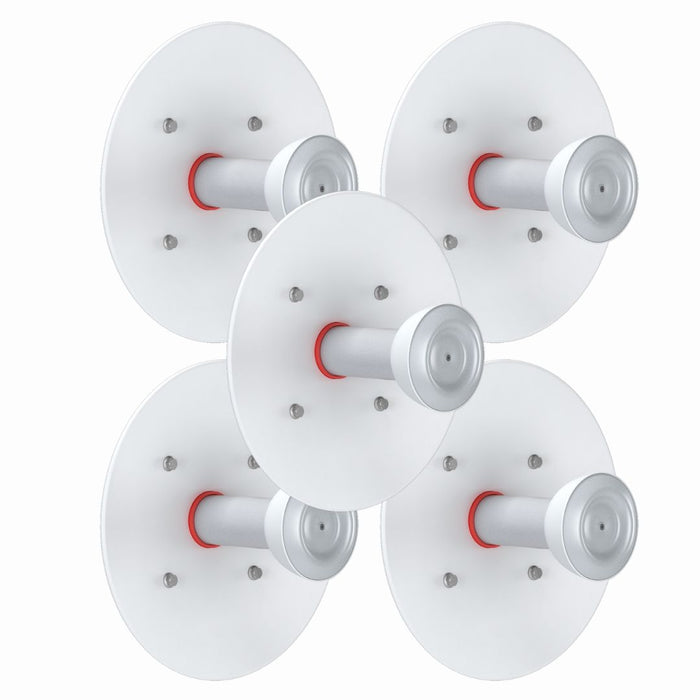

RF elements StarterDish 21 UM 5-Pack [STD-21-UM-5PACK]

STD-21-UM-5PACK by RF Elements
Original price $377.00 - Original price $377.00
Original price $377.00
$377.00
$377.00 - $377.00
Current price $377.00

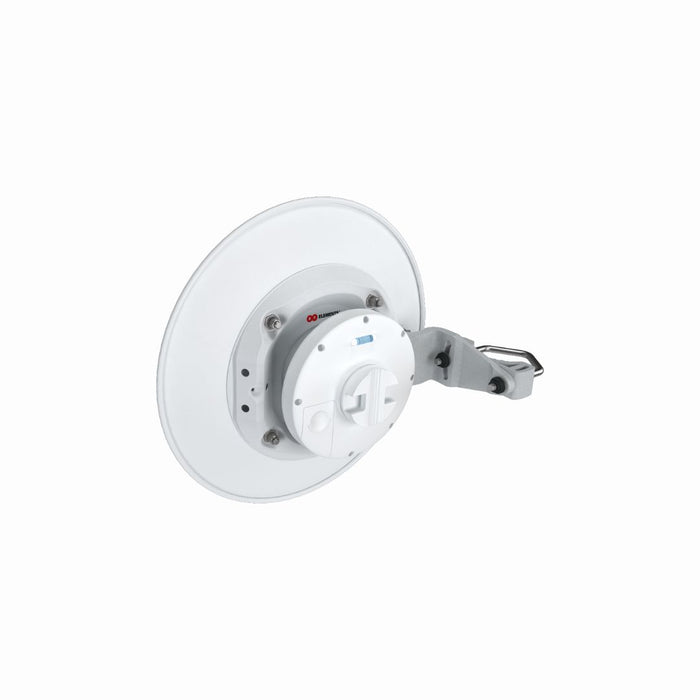

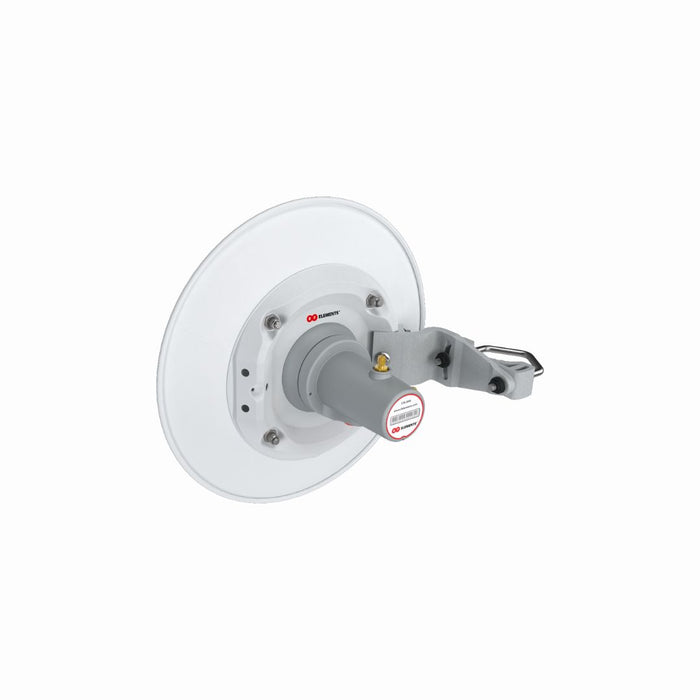

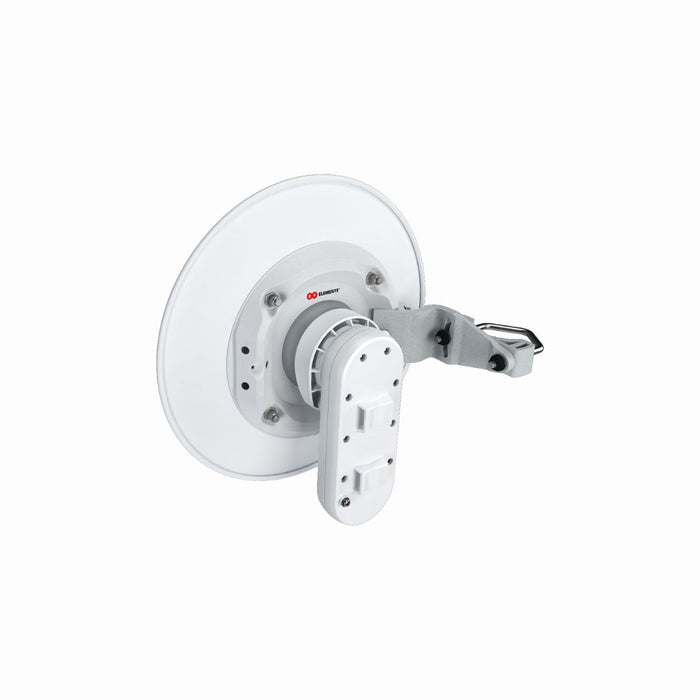

The RF elements StarterDish 21dBi antenna is designed for CPE applications. The antenna is light weight with its reflector made of aluminum. The StarterDish 21dBi antenna provides excellent beam performance in a cost effective package.The antenna is easy to assemble and comes in a highly economical 5 pack. Warning: harsh environment (coastal areas, chimney gases, chemical factories, volcanos) may cause premature oxidation of the StarterDish antenna body. For deployments in harsh environments, RF elements recommends using UltraDish antennas.The RF elements 21dBi UM StarterDish antenna is ready to go. Attach a Mimosa C5x, Ubiquiti PrismStation 5AC, or a Ubiquiti IsoStation 5AC, and you're ready to go.

Compatible Wireless Platforms

  • RF elements: StarterAdapter SMA
  • Mimosa by Airspan: C5x
  • Ubiquiti Networks: PrismStation 5AC, IsoStation 5AC



Product Features:

  • Antenna Connection: Waveguide Port
  • Antenna Type: Parabolic Dish
  • Materials: UV Resistant ABS Plastic, Aluminum, Steel, Zinc Plated Steel & Stainless Steel Hardware
  • Environmental: IP65
  • Pole Mounting Diameter: 20-55 mm (recommend as close to 55 mm as possible)
  • Temperature: -35 °C to + 55 °C (-31 °F to + 131 °F)
  • Wind Survival: 160 km/hour
  • Wind Loading: 53 N at 160 km/hour
  • Mechanical Adjustment: ± 15° Elevation
Product Specifications:
  • Gain: 21dBi
  • Frequency Range: 5150 - 5950 MHz
  • Azimuth Beam Width -6 dB: H 15° / V 15°
  • Elevation Beam Width -6 dB: H 15° / V 15°
  • Azimuth Beam Width -3 dB: H 11° / V 11°
  • Elevation Beam Width -3 dB: H 11° / V 11°
  • Beam Efficiency: 28%
  • Front-to-Back Ratio (Min): 24 dB



Product Includes:
  • (5) RF Elements 21dBi StarterDish
  • (5) Sub-reflector
  • (5) Antenna bases
  • (5) Large pole mount brackets
  • (5) Small pole mount brackets
  • (5) Bracket arms
  • (5) Bags with hardware
  • (5) Bags with C5x adapter
  • (5) Bags with M6 surface treated nuts
