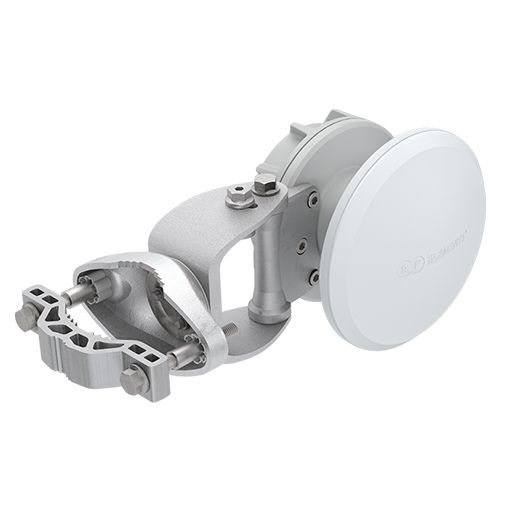

RF elements 80 Degree Symmetrical Horn Antenna with TwistPort Connector [HG3-TP-S80]

RF elements 80 Degree Symmetrical Horn Antenna with TwistPort Connector [HG3-TP-S80]

HG3-TP-S80 by RF Elements
RF Elements HG3-TP-S80 Datasheet RF Elements HG3-TP-S80 Datasheet
$158.00 - $158.00
$158.00
$158.00
$158.00 - $158.00
$158.00

The 80 Degree Symmetrical Horn TwistPort Antenna Gen2 features multiple improvements on RF performance and industrial design, including optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.


Product Features:
  • Antenna Connection: TwistPort- Quick Locking Waveguide Port
  • Antenna Type: Horn
  • Materials: UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminum, Stainless Steel
  • Environmental: IP55
  • Flame Rating: UL 94 HB
  • Pole Mounting Diameter: 30-80mm (RF Elements recommends as close as possible to 80mm)
  • Temperature: -30°C to +55°C (-22°F to +131°F)
  • Wind Survival: 160 Km/Hour
  • Wind Loading: 22 N at 160 Km/Hour
  • Mechanical Tilt: ±25°


Product Specifications:
  • Frequency Range: 5180 - 6400 MHz
  • Gain: 10.4 dBi
  • Azimuth Beam Width -3dB: H 60° / V 60°
  • Elevation Beam Width -3dB: H 60° / V 60°
  • Azimuth Beam Width -6dB: H 80° / V 80°
  • Elevation Beam Width -6dB: H 80° / V 80°
  • Beam Efficiency: 94%
  • Front-to-Back Ratio: 29 dB


Product Includes:


(1) Symmetrical Horn-TwistPort Body

(1) Symmetrical Horn-TwistPort Bracket

(2) M8 x 75mm Screw

(1) 2.9 x 16mm Lock Screw
