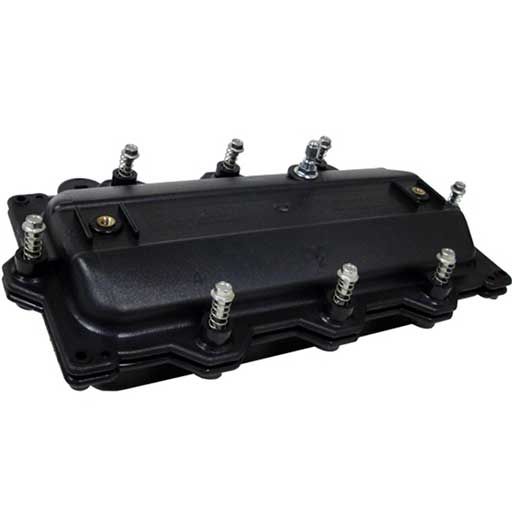

Primus Cable Fiber MiniButt Splice Enclosure 24 Single Fusion Splice Capacity
Primus Cable FB23-4383-24IE MiniButt Fiber Optic Splice Closure is designed for low count fiber splicing and in areas where space is limited. The closure incorporates an integrated gasket to prevent the ingress of water, but to allow for ease of access. The unit comes with (1) 12 single fusion splice tray, with the capacity for an additional tray.Product Features
- Supports both Inline or Butt configurations
- Lightweight and compact
- Up to four cable entries with cable OD range of 0.3" to 0.63"
- Suitable for above or below grade installations
- Constructed with impact and corrosion resistant materials
- Integrated "F" pressure testing valve and grounding lugs
- Up to 24 single fusion or 48 mass fused fibers
- RUS Listed
- Splice Trays: (2) 12 Fiber Splice Trays. (1) Included
- Dimensions: 15 x 6.5 x 3"
- Weight: 7.5lbs
- Material: 5720Y Xenoye
