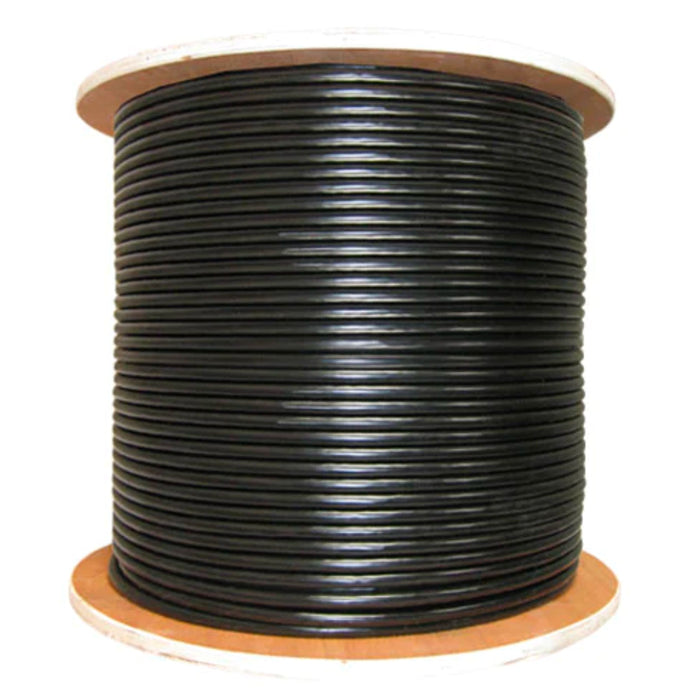

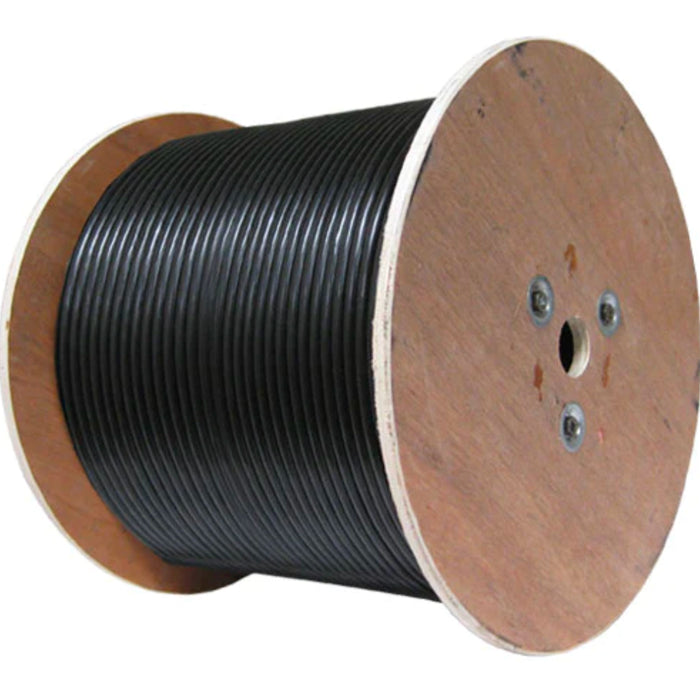

Primus Cable CAT6 Direct Burial Outdoor Bulk Ethernet Cable, Solid Copper Dual Shielded, 23AWG 1000FT

C6CMXD-6258BK by Primus Cable
Original price $359.00 - Original price $359.00
Original price $359.00
$359.00
$359.00 - $359.00
Current price $359.00

Primus Cable's Dual Shielded Outdoor Direct Burial CAT6 Cable is ideal for your outdoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

This Dual Shielded Outdoor Direct Burial CAT6 Enhanced Cable is the perfect fit for installations where the cable will be buried under ground in conduit. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a low density polyethylene (LDPE) Jacket. This cable also includes a dual shielding which helps eliminate electrical interferences that could impede your signal. This dual shielding is comprised of aluminum shielding and then wrapped in braided aluminum which offers to layers of protection from interference. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. The Category 6 Direct Burial Outdoor Cable is designed for residential outdoor direct burial LAN applications, making it the ideal solution for installation runs that require the cable to be buried under ground in conduit. This cable is also tested up to speeds of 600MHz.

To make sure they are supplying customers with high quality bulk Ethernet cables these cables have to meet and/or exceed CAT6 ANSI/TIA-568.2-D standards. Primus Cable's CAT6 Outdoor cable is also manufactured to meet current CAT6 guidelines and is verified by outside standards organizations and is RoHS Compliant.

Product Applications
  • NTSC/PAL Component or Composite Video
  • AES/EBU Digital Audio
  • Other high-performance applications:
    • Noisy Environments
    • Harsh Environments
    • Direct Burial
    • Industrial Ethernet

Product Features

  • High-Performance Data Communications Cable
  • CAT6 Outdoor Direct Burial, UV Rated, Outside Plant
  • Suitable For 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
  • Designed For Outdoor Installations
  • TC Braided + AL Foil Shielded w/ Unshielded Twisted Pairs (SF/UTP)
  • 4-Pair Easily Identified Color Striped Pairs
  • 23 AWG Solid Bare Copper Conductors
  • Excellent Attenuation And Crosstalk Characteristics
  • Exceeds TIA 568C.2, ISO/IEC 11801, And YD/T1019 Specifications
  • RoHS Compliant
  • Sequential Length Markings On Jacket
  • Supplied On A 1000' Wooden Spool In A Box
Product Specifications:
Physical:
  • Size: 15”x15”x13”
  • Resolution: 3.2μm
    Conductor Size: 23AWG
  • Conductor Material: Solid Bare Copper
  • Insulation Material: High Density Polyethylene (HDPE)
  • Insulation Diameter: 1.12 ± 0.05mm
  • Number of Conductors: 8 Conductors
  • Number of Pairs: 4 Pairs
  • Outer Shield Material: Aluminum Foil
  • Braid Shielding: Tinned Copper 0.10mm
  • Drain Wire: Yes
  • Outer Jacket Material: LDPE (Complies RoHS)
  • Outer Jacket Diameter: 7.8mm ± 0.4mm
  • Outer Jacket Rip Cord: Yes
Mechanical:
  • Storage Temperature Range: N/A
  • Installation Temperature Range: N/A
  • Operating Temperature Range: N/A
  • Bulk Cable Weight: 42lbs. / 1000FT
  • Max. Recommended Pulling Tension: N/A
  • Min. Bend Radius/Minor Axis: N/A
  • Min. Bend/Installation: N/A
  • Test Object: Jacket
  • Test Material: PVC
  • Before Tensile Strength: ≥10.0
    • Aging Elongation: ≥350
    • Aging Condition: 100°C x 24hrs x 10Days
  • After Tensile Strength: N/A
    • Aging Elongation: ≥300
    • Cold Bend: No Visible Cracks (-20°C ± 2°C x 4h)

Package Contents:

  • (1) Primus Cable CAT6 Bulk Double Shielded Tinned Copper 23AWG Cable
  • (1) Black Jacket
  • (1) 1000ft On A Wooden Spool In A box
