Primus Cable 12 Strand SM 9/125 Plenum OFNR Fiber Optic Cable

FB15-3742-S12P by Primus Cable
Sold out
Original price $0.53 - Original price $0.53
Original price
$0.53
$0.53 - $0.53
Current price $0.53

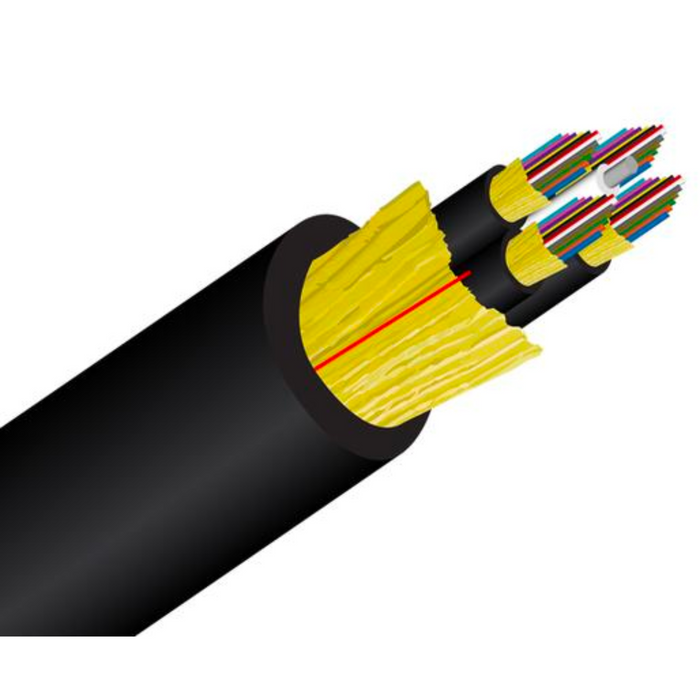

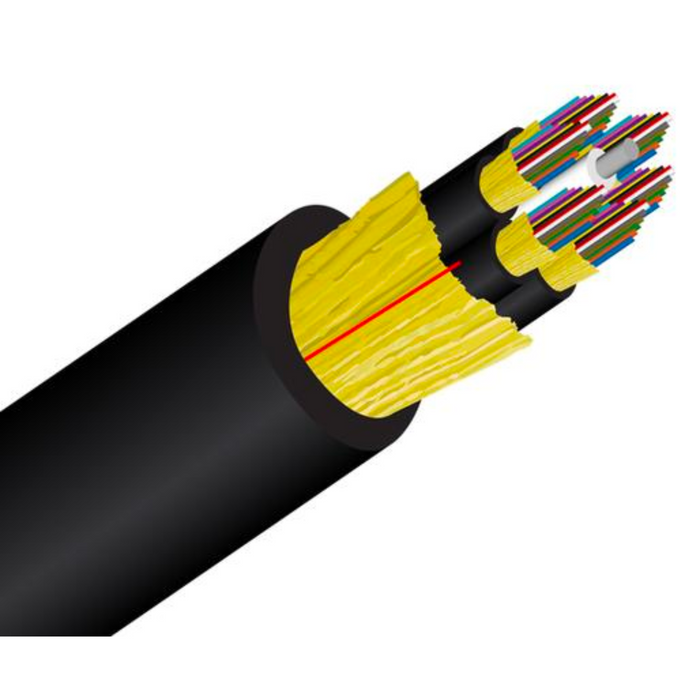

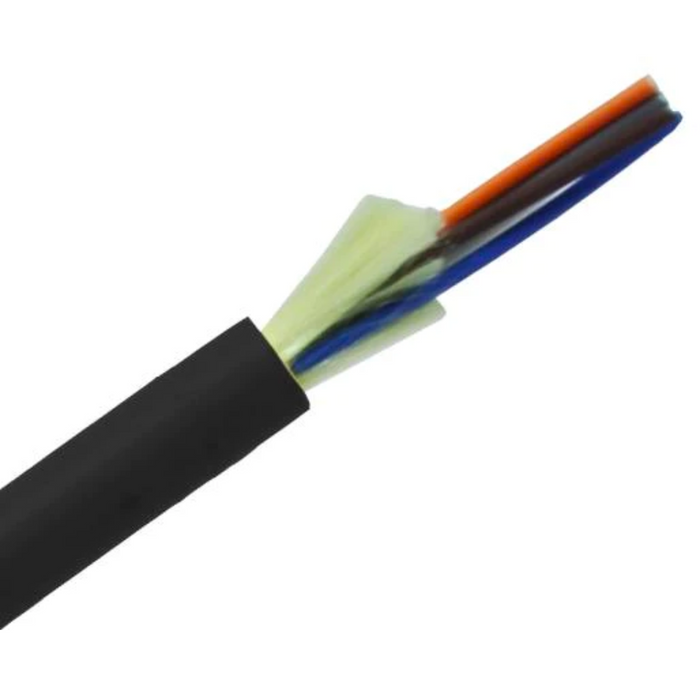

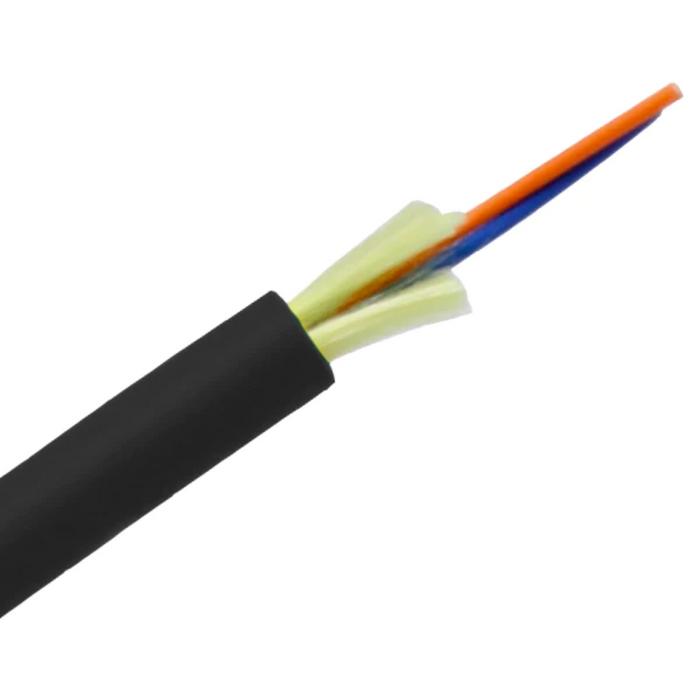

Primus Cable plenum distribution fiber cable is composed of 2-24 colored tight buffers, aramid yarn, and a PVC outer jacket. All component materials meet the EU RoHS and REACH Directive standards.



The plenum distribution fiber Cable is available in 12 TIA standard colors or special order colors. Our Fiber is UL Listed with a OFNP fire rating. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers.


Product Features:

  • 900µm Tight Buffers.

  • Water blocking aramid yarn strength members.

  • UV resistant jacket, OFNP rated construction

  • Exclusive use of Corning® optical fibers.

  • Jacket print ensures product identification and fiber compatibility.

  • Buffers strip consistently between 3.5-5lbs/ft. helpful for onsite termination.

  • Durable jacket offers added protection during installation and in rugged use applications

Applications:
  • Rated for indoor/outdoor applications

  • Trunk cable between floors

  • Data centers

Specifications:
  • Cable Characteristics
    • Fiber Count: 12

    • Outer Jacket Material: Flame Retardant PVC

    • Outer Jacket Color: Black

    • Strength Member: Aramid Yarn

    • Tight Buffer Material: Flame Retardant PVC

    • Tight Buffer Color: Available in 12 TIA/EIA Color Standards

  • Temperature Range

    • Storage Temperature: -40ºC to +70ºC

    • Operating Temperature: -40ºC to +70ºC

  • Mechanical Characteristics
    • Nominal Outer Diameter: 2 Strand: 4.40 mm

    • Minimum Bend Radius (Installation): 2 Strand: 6.60 cm

    • Minimum Bend Radius (Operation): 2 Strand: 4.40 cm

  • Optical Characteristics
    • Core Size: 9 µm

    • Wavelength: (1310-1550)nm

    • Max. Attenuation: (0.5-0.4) dB/km
