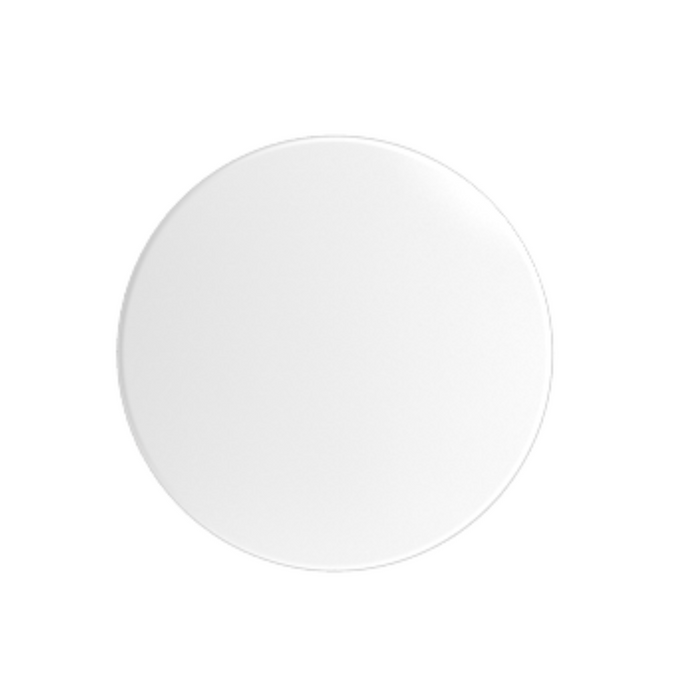

Mimosa N5-X12 4.9-6.4GHz 12dBi Dual-Slant 45degree Beamwidth 38degree Horn Antenna (100-00086)

Mimosa N5-X12 (100-00086) is the industry’s most versatile, modular, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9GHz – 6.4GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet link speeds of up to 100Mbps. With the purchase of a PTMP speed feature key, speeds of up to 500Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700Mbps, a PTP feature key must be purchased.

• Four Twist-On, Flexible Antenna Options
• PTP or PTMP Modes (feature key may be required)
• Extended Frequency 4.9GHz – 6.4GHz
• Best-in-Class Noise Immunity
• Ultra Rugged
• Low-Power Consumption
• Ultra Reliable
• Gigabit Ethernet: 10/100/1000-Base-T
• Management Services: Mimosa cloud monitoring and management; SNMPv2 & Syslog monitoring; HTTPS; HTML5-based web UI

• Product: N5-X12 (horn)
• Gain: 12dBi
• Polarization: Dual-slant 45°
• Beamwidth Symmetric (3dB): 38°
• Front-to-Back Ratio (min): 29dB
• Front-to-Side Ratio (min): 27dB
• Weight: 0.16 kg (0.35lbs)
• Dimensions: Diameter:76 mm (2.99”) Depth: 67 mm (2.63”)
• Mount: Mimosa N5-X twist-on
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 3.27 kg @ 160 km/h (7.20lbs @ 100 mph)
