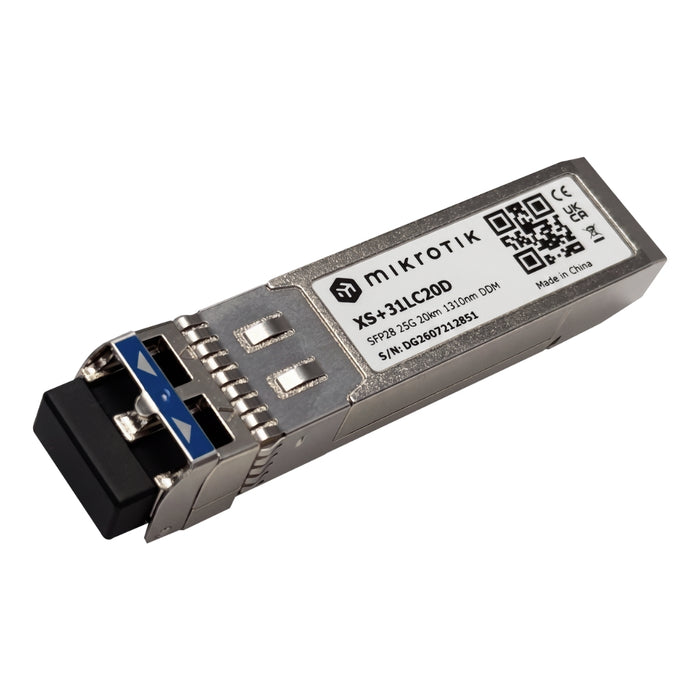

MikroTik XS+31LC20D 1G/10G/25G SFP28 Single-Mode Module, 20 km

MikroTik XS+31LC20D 1G/10G/25G SFP28 Single-Mode Module, 20 km

by MikroTik
SKU XS+31LC20D
$149.00 - $149.00
$149.00
$149.00
$149.00 - $149.00
$149.00
+$13.11 Tariff Surcharge added at checkout. i Due to current Section 301 import tariffs and related surcharges, a fee applies to this product. This fee will be added at checkout.

Product Information

Overview

The MikroTik XS+31LC20D is a single-mode optical module designed for fiber links up to 20 km. Supporting 1G, 10G, and 25G data rates in a single module, it provides flexible connectivity across SFP, SFP+, and SFP28 applications without requiring separate modules for each speed.

Designed as a direct upgrade to the XS+31LC10D, the XS+31LC20D doubles the supported link distance from 10 km to 20 km at the same price. It uses a 1310 nm wavelength and Dual LC UPC connector, making it a simple, cost-effective option for extending high-speed fiber connections over longer distances.

Ideal Applications

  • Long-Distance Single-Mode Fiber Links
  • 1G, 10G & 25G Network Connections
  • Network Uplinks & Fiber Infrastructure
  • Upgrades from XS+31LC10D 10 km Links

Highlights

Key Features

1G, 10G & 25G Connectivity

A single module supports 1G, 10G, and 25G data rates, providing flexible connectivity across SFP, SFP+, and SFP28 applications.

Up to 20 km Fiber Reach

Designed for single-mode fiber links up to 20 km, providing extended reach for longer-distance network connections.

Direct XS+31LC10D Upgrade

Upgrade from the XS+31LC10D while keeping support for 1G, 10G, and 25G connectivity. The XS+31LC20D doubles the supported distance from 10 km to 20 km at the same price.

Dual LC Single-Mode Connectivity

A Dual LC UPC connector and 1310 nm wavelength provide standard single-mode optical connectivity for compatible network equipment and fiber infrastructure.

Product Details

Technical Specifications

General Specifications

  • Product Code: XS+31LC20D
  • Format: SFP / SFP+ / SFP28
  • Data Rate: 1G / 10G / 25G
  • Fiber Mode: Single Mode
  • Connector: Dual LC UPC
  • Wavelength: 1310 nm
  • Maximum Distance: 20 km
  • Operating Temperature: -40°C to +70°C
  • Maximum Power Consumption: 1 W

Optical Characteristics

  • Transmitter Output Power: -3 to 2 dBm
  • Receiver Sensitivity (OMA): -14 dBm
  • LOS Deasserted (Average): -15 dBm
  • LOS Asserted (Average): -30 dBm
  • LOS Hysteresis: 0.5 to 5 dB

Electrical Characteristics

  • Receiver Differential Output Voltage: 340–800 mVpp
  • LOS Output Voltage High: 2.0 V to Vcc
  • LOS Output Voltage Low: Up to 0.8 V

Resources

Product Documentation

Datasheet
