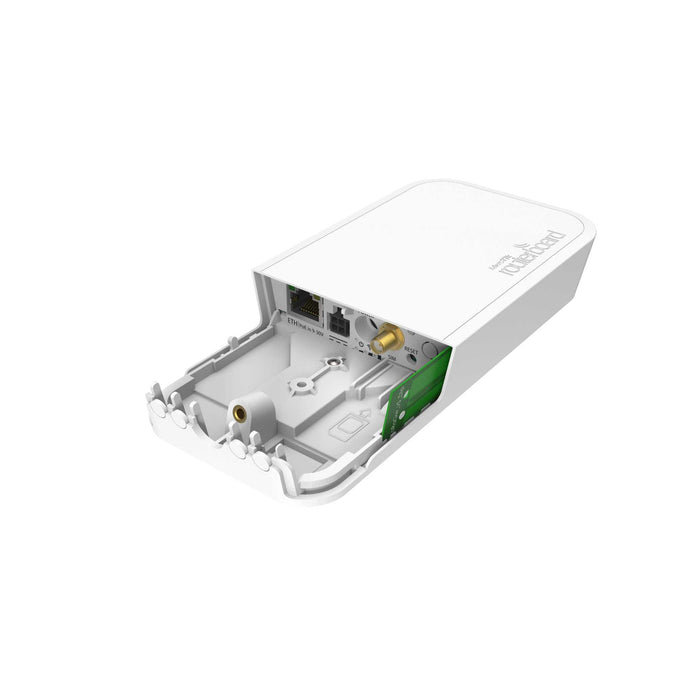

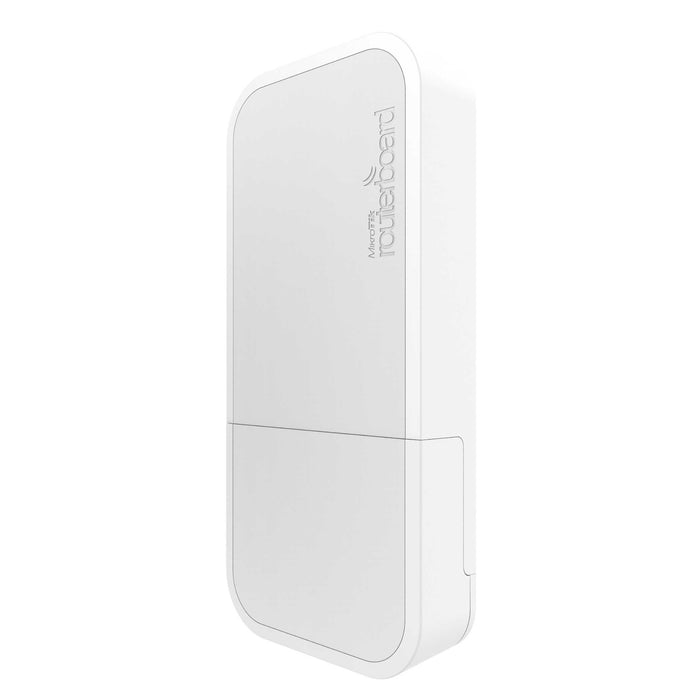

MikroTik wAP LoRa9 Kit 902-928MHz Concentrator Gateway mini PCI Card Kit

RBwAPR-2nD&R11e-LR9 by MikroTik
Sold out
Original price $161.95 - Original price $161.95
Original price
$161.95
$161.95 - $161.95
Current price $161.95

MikroTik wAP LoRa9 Kit 902-928MHz concentrator gateway mini PCI card kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend. LoRa Antenna kit with a 6.5 dBi Omni antenna for 824-960 MHz, 1 m long SMA cable and mechanical holder for quick and easy mast attachment – when you need that extra network coverage.


Product Specifications:

  • Product Code: RBwAPR-2nD&R11e-LR9
  • CPU: QCA9531 650 MHz
  • Size of RAM 64 MB
  • 10/100 Ethernet ports: 1
  • Wireless: Built-in 2.4 GHz 802.11b/g/n, dual-chain
  • Antenna gain 2 dBi
  • PoE in Yes
  • Supported input voltage 9 V - 30 V (Passive PoE)
  • Dimensions 185 x 85 x 30 mm
  • Operating ambient
  • Temperature -40°C .. +60°C
  • Operating system RouterOS, License level 4
  • Max power consumption 7 W
  • Interface: Mini-PCIe
  • Supported class: A and C
  • Frequency: 902-928 MHz (AU915-928, US902-928, AS923, KR920-923)
  • RF Output power: 902-928 MHz 23 dBm
  • Receive max sensitivity: -137 dB @ SF12
  • Range: Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit


Product Includes:


(1) MikroTik LoRa9 PCI Card

(1) wAP Casing

(1) User Guide
