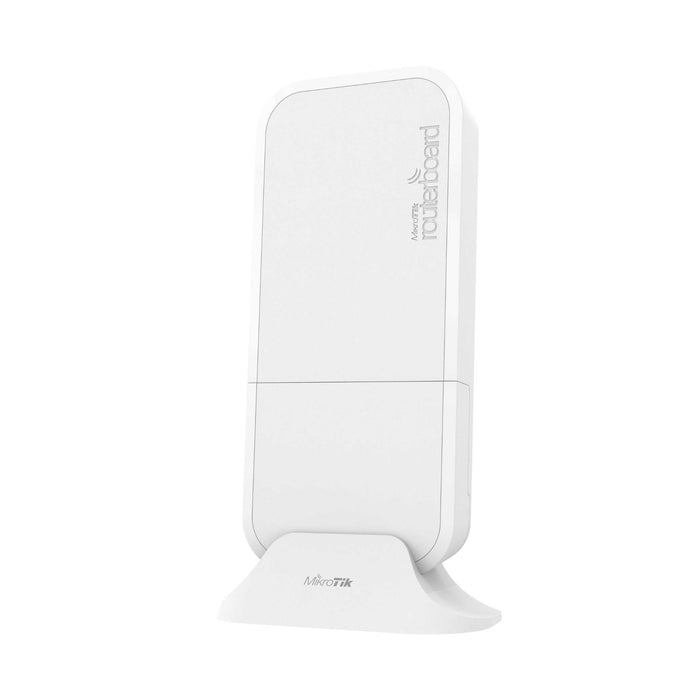

MikroTik wAP ac LTE6 Dual-Band 2.4/5GHz Wireless Access Point Kit

RBwAPGR-5HacD2HnD&R11e-LTE6 by MikroTik
Sold out
Original price $180.95 - Original price $180.95
Original price
$180.95
$180.95 - $180.95
Current price $180.95

MikroTik wAP ac LTE6 Dual-Band 2.4/5GHz wireless access point kit is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its CAT6 LTE modem enables even greater download speed – up to 300 Mbps! CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.


Compatible with US Carriers: T-Mobile & AT&T


Product Specifications:

  • Product code RBwAPGR-5HacD2HnD&R11e-LTE6
  • CPU Quad-core IPQ-4018 716 MHz
  • Size of RAM 128 MB
  • Storage 16 MB flash

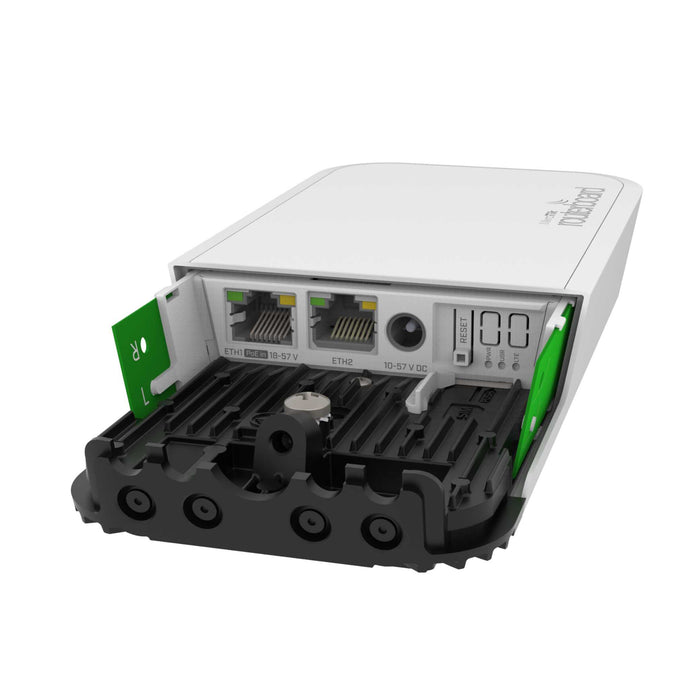

  • 10/100/1000 Ethernet ports 2
  • Wireless 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain
  • Wireless regulations Specific frequency range will be limited by country regulations
  • Wireless antenna max gain 2.5 dBi
  • LTE antenna max gain 4 dBi (with U.FL connector)
  • Antenna beam width 360°
  • LTE category 6 (300 Mbps downlink, 50 Mbps uplink)
  • 3G category R7 (21 Mbps downlinks, 5.76 Mbps uplink) R8 (42.2 Mbps downlink, 5.76 Mbps uplink)
  • 2G category Class12
  • Micro SIM slot 1
  • Supported input voltage DC jack 10 - 57 V
  • PoE in Passive PoE 18-57 V or active 802.3af/at
  • Dimensions 185 x 85 x 30 mm
  • Operating temperature -30°C .. +60°C
  • Operating system RouterOS, License level 4
  • MiniPCIe slots 1
  • Max Power consumption 16 W
Supported Bands
  • LTE (FDD) bands 1(2100)/2(1900)/3(1800)/5(850)/7(2600)/8(900)/12(700)/17(700)/20(800)/25(1900)/ 26(850)
  • LTE (TDD) bands 38(2600)/39(1900)/40(2300)/41n(2500)
  • 3G bands 1(2100)/2(1900)/5(850)/8(900)
  • 2G bands 2(1900)/3(1800)/5(850)/8(900)
Product Includes:


(1) Mikrotik wAP ac LTE6 Access Point

(1) Power Adapter (24V 0.8A)

(1) Screw Kit

(1) Desktop Stand

(1) Metal Ring

(1) Plastic Strap

(1) Mount Base

(1) Gigabit PoE Injector

(1) Ceiling Mount Base


Product Documentation:


MikroTik wAP ac LTE6 Kit Data Sheet
