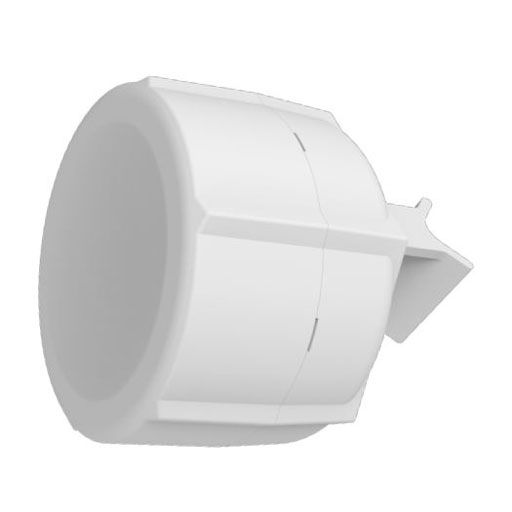

MikroTik SXT LTE Kit with 9dBi Antenna Level 3 INTL

RBSXTR&R11e-LTE by MikroTik
Sold out
Original price $123.95 - Original price $123.95
Original price
$123.95
$123.95 - $123.95
Current price $123.95

MikroTik SXT LTE kit is powered by fast CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range. The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant. The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.


Product Specifications:

  • Product Code: RBSXTR&R11e-LTE
  • CPU: QCA9531 650 MHz
  • Size of RAM: 64 MB
  • Storage: 16 MB Flash
  • 10/100 Ethernet ports: 2
  • LTE antenna gain:
  • Antenna beam width:
  • LTE category:
  • 3G category: R8 (Cat24 - 42.2Mbps Downlink), R7 (Cat14 - 21.1Mbps Downlink)
  • SIM slot: 2 (Micro SIM)
  • PoE in: Yes, on Ether1
  • PoE out: Yes, on Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA max total out (A): 600 mA
  • Supported input voltage: 18 - 57 V (Passive PoE, 802.3af/at on Ether2)
  • Dimensions: 140 x 140 x 103 mm
  • Operating temperature: -40°C .. +60°C tested
  • License level: 3
  • Operating System: RouterOS
  • Max Power consumption: 6W
    • Supported Bands: LTE (FDD) bands: 2(1900)/4(1700)/5(850)/12(700), 3G bands: 2(1900)/5(850)


    Product Includes:


    (1) SXT LTE Kit(1) PoE Injector

    (1) Metal Ring

    (1) Pole Mounting Bracket

    (1) Power Adapter (24V 0.38A)


    Product Documentation:


    RBSXTR&R11e-LTE Datasheet
