MikroTik quickMOUNT pro Wall Mount Adapter

QMP by MikroTik
Original price $9.50 - Original price $9.50
Original price
$9.50
$9.50 - $9.50
Current price $9.50

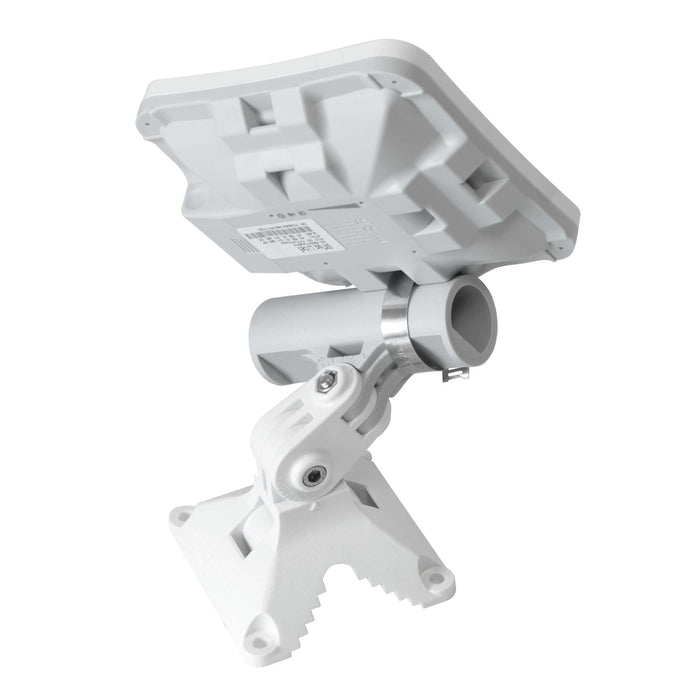

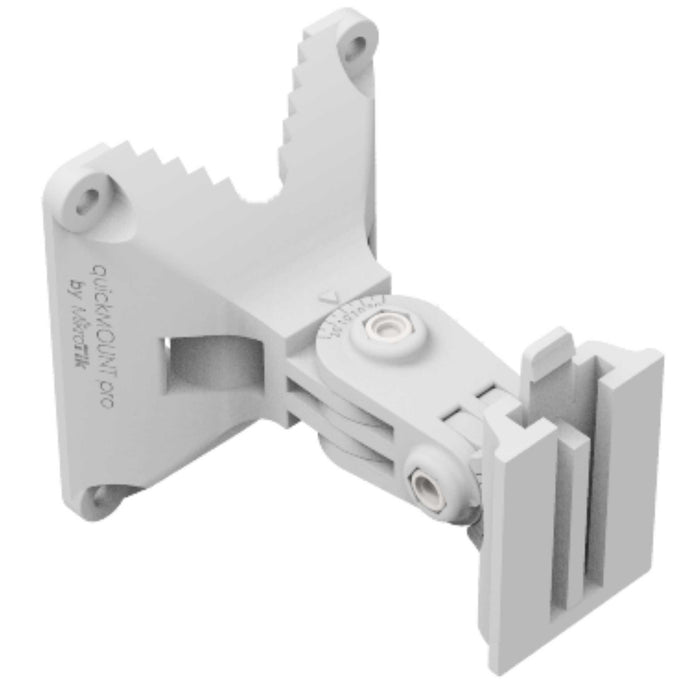

The MikroTik quickMOUNT Pro is an advanced wall mount adapter for small point to point and sector antennas. It can be used to mount on the wall or use it as an adapter from large diameter pole to small size antenna mounting clip ensuring reliable fitment. MikroTik quickMOUNT Pro gives possibility to turn antenna within 140deg both in horizontal and vertical plane. With the quickMOUNT pro it is possible to perfectly set antenna alignment using integrated graduated scale. It can be used with any pole mountable device or MikroTik small mounting clip with weight less than 3.31lbs (1.5kg).


Product Features:
  • Simple design
  • Low cost
  • Supports SXT, Omnitik, BaseBox or any other pole mountable device
  • The adapter is very durable due to it’s special material composite called anvilNITE.


Product Specifications:
  • Dimensions: 3.74 x 3.46 x 4.4in (95 x 88 x 112mm)
  • Tube diameter: 1.38in (35mm)
  • Maximum supported antenna weight: 3.31lbs (1.5kg)
  • Angle turn: 140deg
  • Operating temperature: -40 to +104deg F (+/-40deg C)
  • Maximum wind load: 100N
  • Material: anvilNITE


Product Compatibility:
  • MikroTik SXT series
  • MikroTik OmnTik
  • Various pole mountable antennas


Product Includes:


(1) MikroTik QMP wall mount

(4) 6x30mm wall anchor

(4) Self tapping screw

(4) M6x20 buton head screw (only QM-LHG)

(4) M6 locking nut (only QM-LHG)

(1) 50-70mm hose clamp
