MikroTik QRT 5 ac Flat Panel Antenna 5GHz 802.11ac 24dBi MMCX US [RB911G-5HPacD-QRT-US]

RB911G-5HPacD-QRT-US by MikroTik
Original price $199.00
Original price $199.00 - Original price $199.00
Original price $199.00
Current price $163.95
$163.95 - $163.95
Current price $163.95

This product has been discontinued by MikroTik. Suggested replacements is RBDynaDishG-5HacD + L4 purchased separately (if AP mode needed)

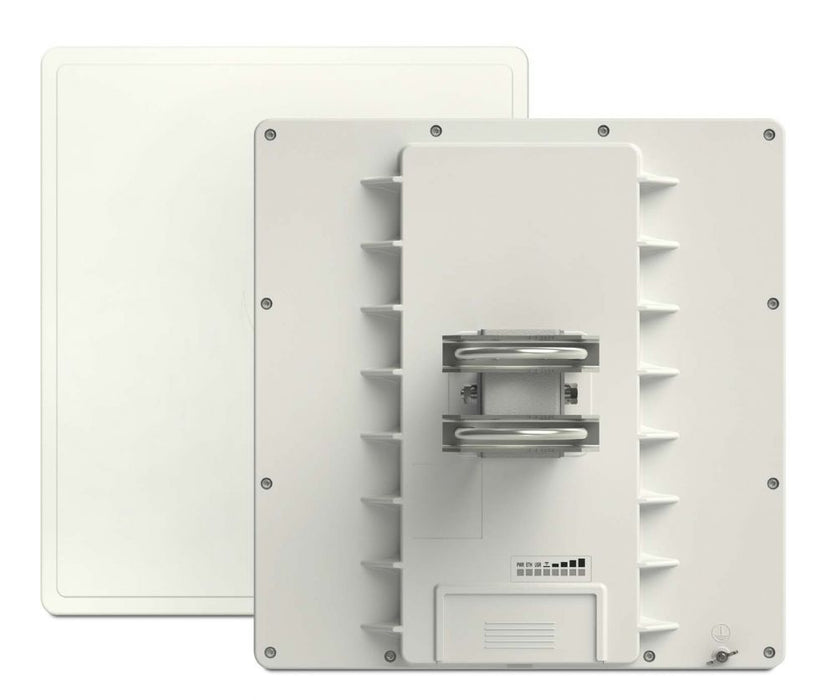

The MikroTik QRT 5 ac is a rugged outdoor flat panel antenna, with a built in MikroTik RouterBOARD. This device has a 24dBi antenna and a high power 5GHz wireless transmitter, which now supports 802.11ac and is backwards compatible with 802.11a/n. Inside the QRT 5 ac is a high power RB911G-5HPacD dual chain wireless device, with high performance and a high output power wireless transmitter. It also features a Gigabit Ethernet port, to fully utilize the benefit of 802.11ac high speed wireless. It's easy to use and quick to deploy; the QRT is ideal for longer point to point links at 802.11ac speeds.


MikroTik RB911G-5HPacD-QRT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.


Product Features:
  • Super high power 5GHz wireless transmitter
  • Ready to mount enclosure
  • 802.11ac
  • Special shielding to improve operation in high interference areas
  • Dual-Polarity antennas built-in
  • RouterOS license: L4
Product Specifications:
  • CPU: 720MHz
  • RAM: 128MB
  • Wireless chip model: QCA9882-BR4A-R
  • Number of chains: 2
  • Frequencies: 4.9GHz-5.875GHz
  • Gain: 24dBi
  • RF connector type: MMCX
  • Operating temperature range: -22°F to 140°F (-30°C to 60°C)
  • Max Power consumption: 11.5W
  • Supported input voltage: 8V-30V
  • VSWR: 1.37 : 1
  • 3 dB Beam-Width, H-Plane:10.5deg
  • 3 dB Beam-Width, E-Plane, typ.: 10.5deg
  • Polarization: Dual, Vertical and horizontal
  • Port to Port Isolation: -50dB
  • Cross Polarization, min.: -25dB
  • Front to Back Ratio, min.: 35dB
Product Includes:
  • (1) MikroTik QRT 5 ac device
  • (1) QRT antenna mount
  • (2) U Bolts
  • (1) U mast clamp
  • (1) Screw Kit
  • (1) 24V 1.2A Power Adapter
  • (1) Gigabit PoE Injector
