MikroTik QRT 5 ac Flat Panel Antenna 5GHz 802.11ac 24dBi MMCX INTL [RB911G-5HPacD-QRT]

This product has been discontinued by MikroTik. Suggested replacements is RBDynaDishG-5HacD + L4 purchased separately (if AP mode needed)

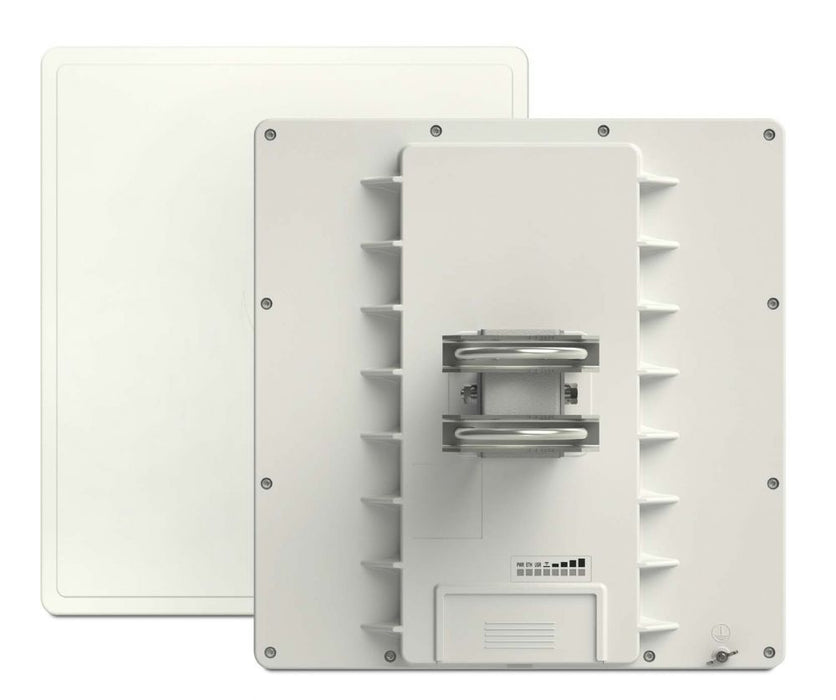

Inside the MikroTik QRT 5 ac is a high power RB911G-5HPacD dual chain wireless device, with high performance and a high output power wireless transmitter. It also features a Gigabit Ethernet port, to fully utilize the benefit of 802.11ac high speed wireless. It's easy to use and quick to deploy; the QRT is ideal for longer point to point links at 802.11ac speeds.

RB911G-5HPacD-QRT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Product Features:

• Super high power 5GHz wireless transmitter
• Ready to mount enclosure
• 802.11ac
• Special shielding to improve operation in high interference areas
• Dual-Polarity antennas built-in
• RouterOS license: L4

• CPU: 720MHz
• RAM: 128MB
• Wireless chip model: QCA9882-BR4A-R
• Number of chains: 2
• Frequencies: 4.9-5.875 GHz
• Gain: 24dBi
• RF connector type: MMCX
• Operating temperature range: -22 to 140deg F (-30 to 60deg C)
• Max Power consumption: 11.5W
• Supported input voltage: 8V-30V
• VSWR: 1.37 : 1
• 3 dB Beam-Width, H-Plane:10.5deg
• 3 dB Beam-Width, E-Plane, typ.: 10.5deg
• Polarization: Dual, Vertical and horizontal
• Port to Port Isolation: -50dB
• Cross Polarization, min.: -25dB
• Front to Back Ratio, min.: 35dB

• (1) QRT 5 ac device
• (1) QRT antenna mount
• (2) U Bolts
• (1) U mast clamp
• (1) Screw Kit
• (1) 24V 1.2A Power Adapter
• (1) Gigabit PoE Injector
